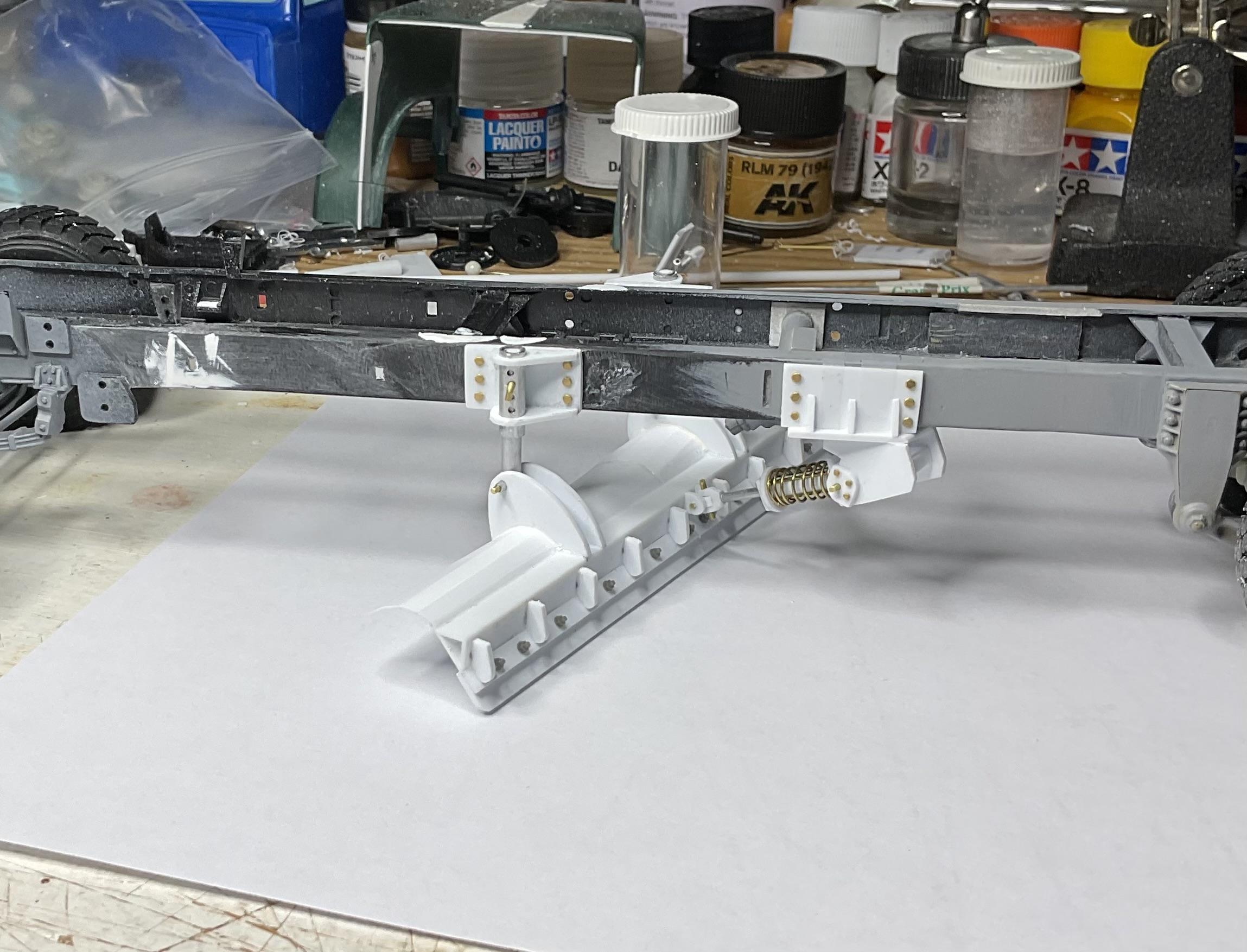

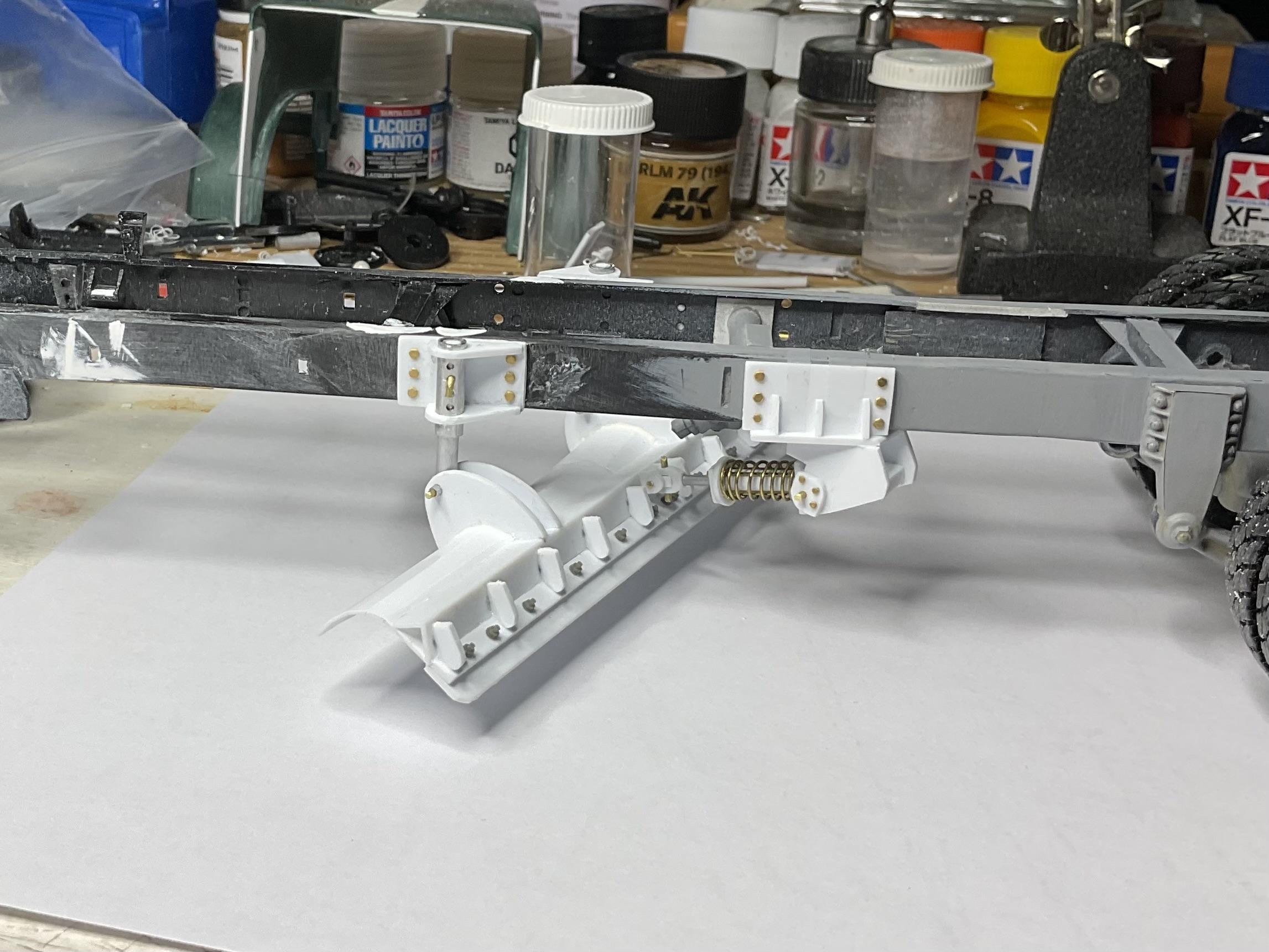

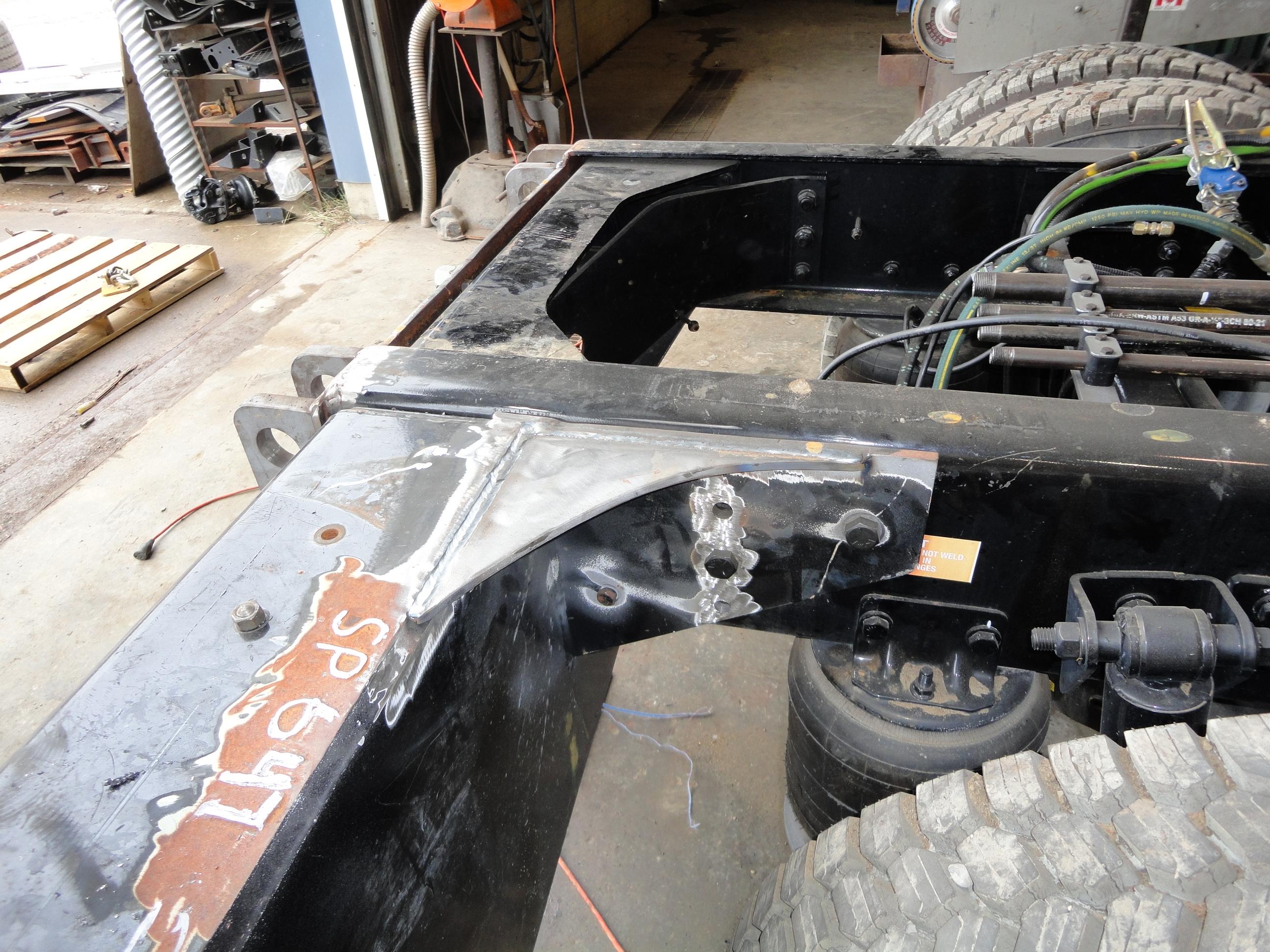

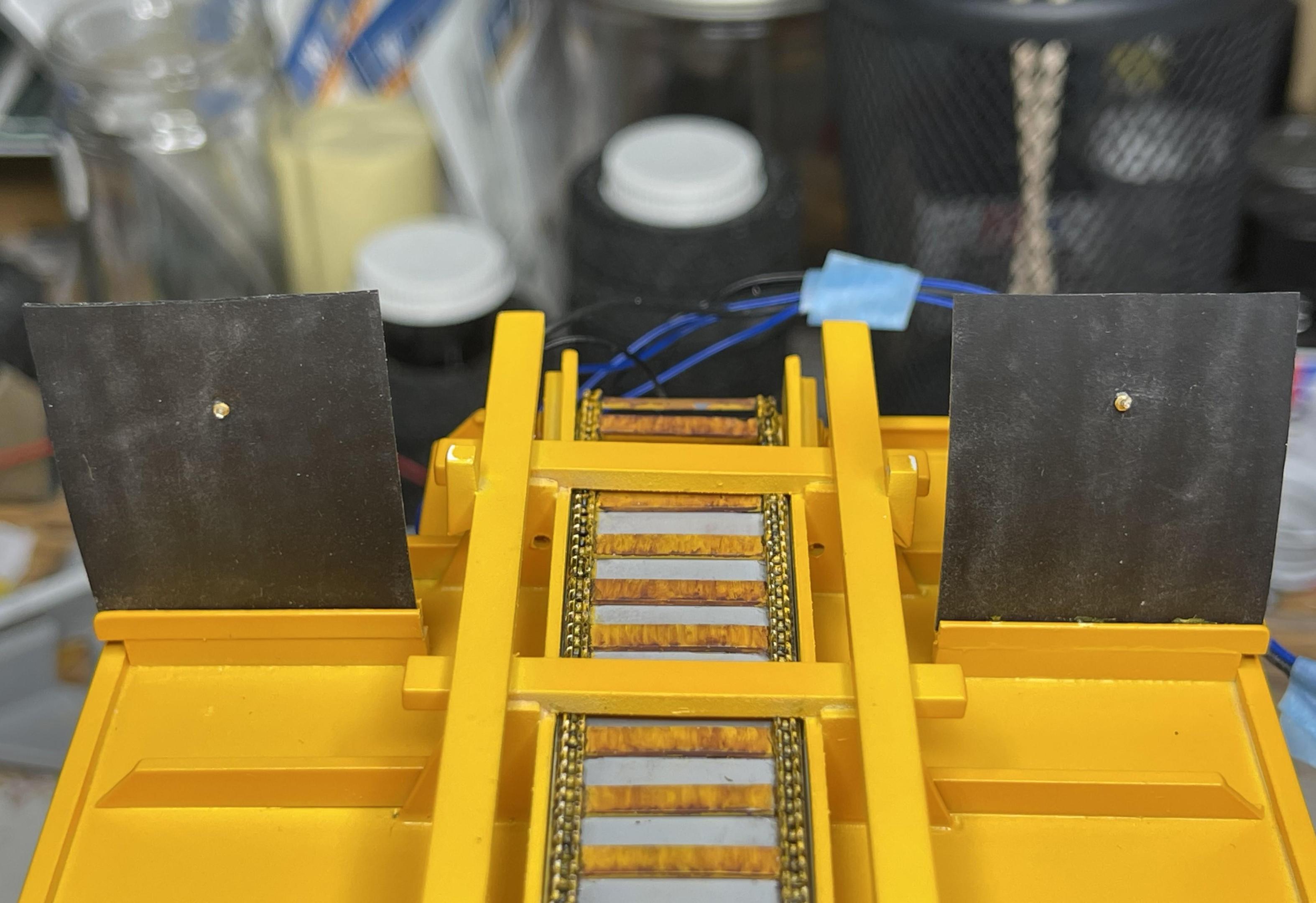

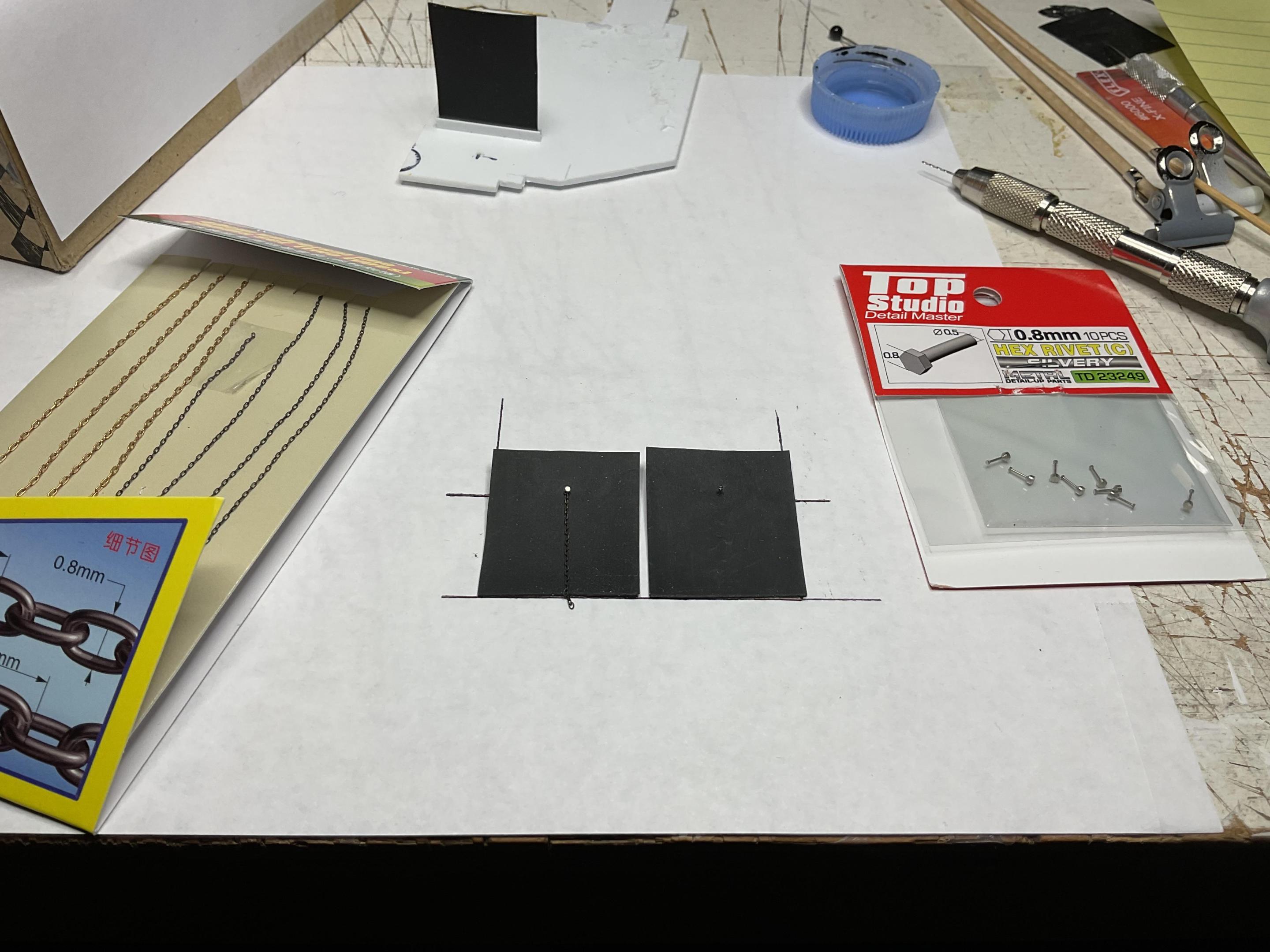

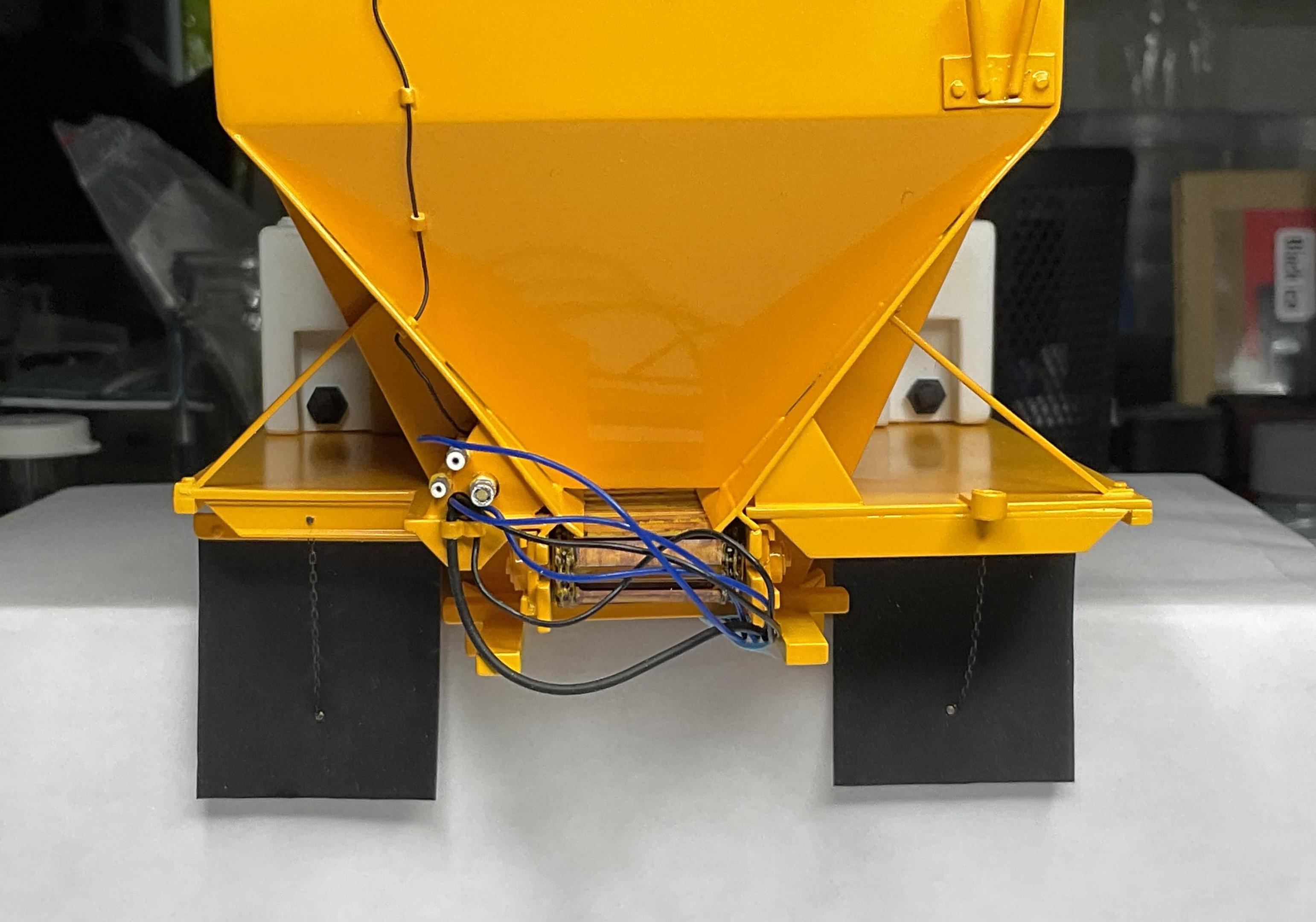

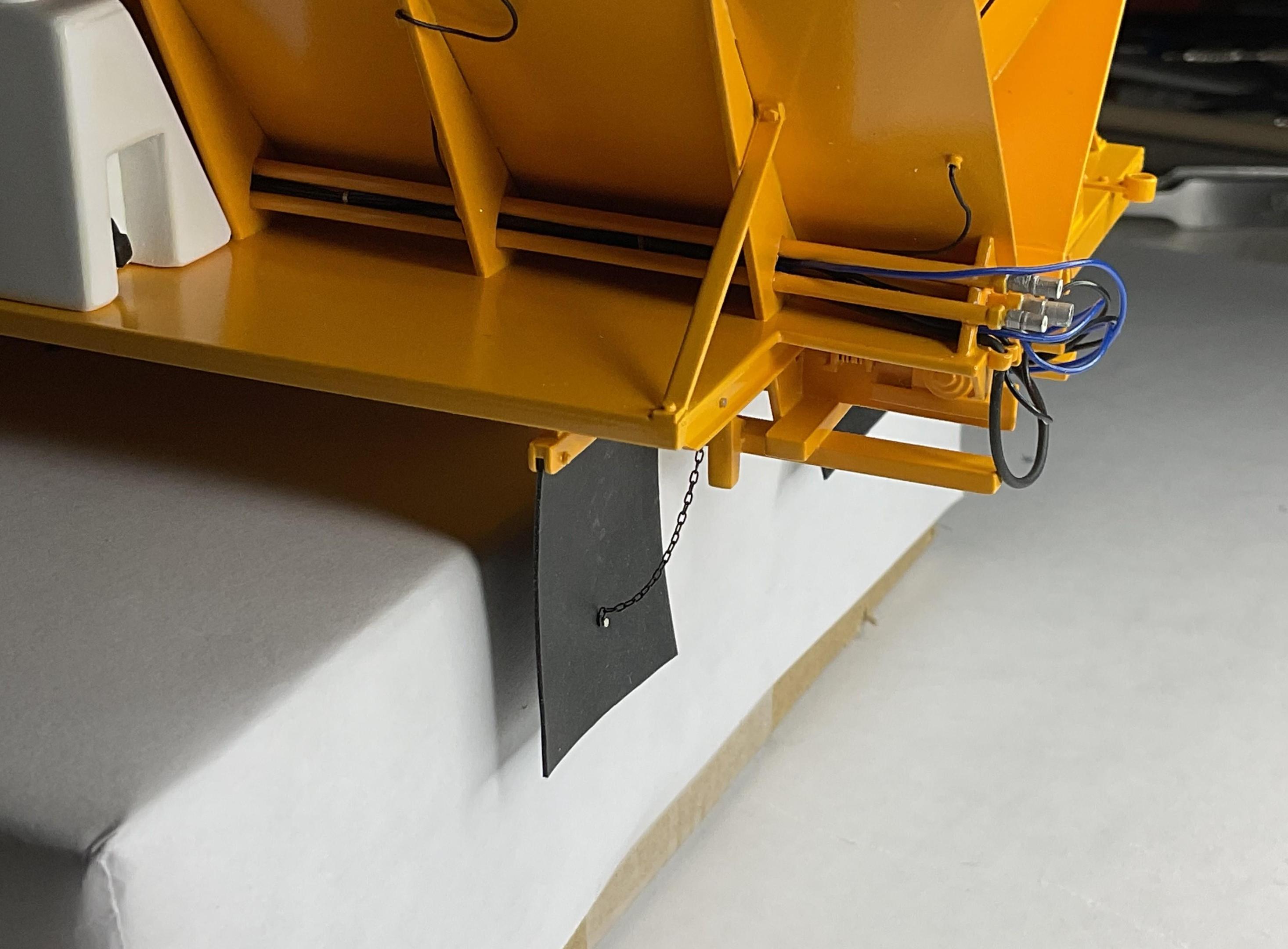

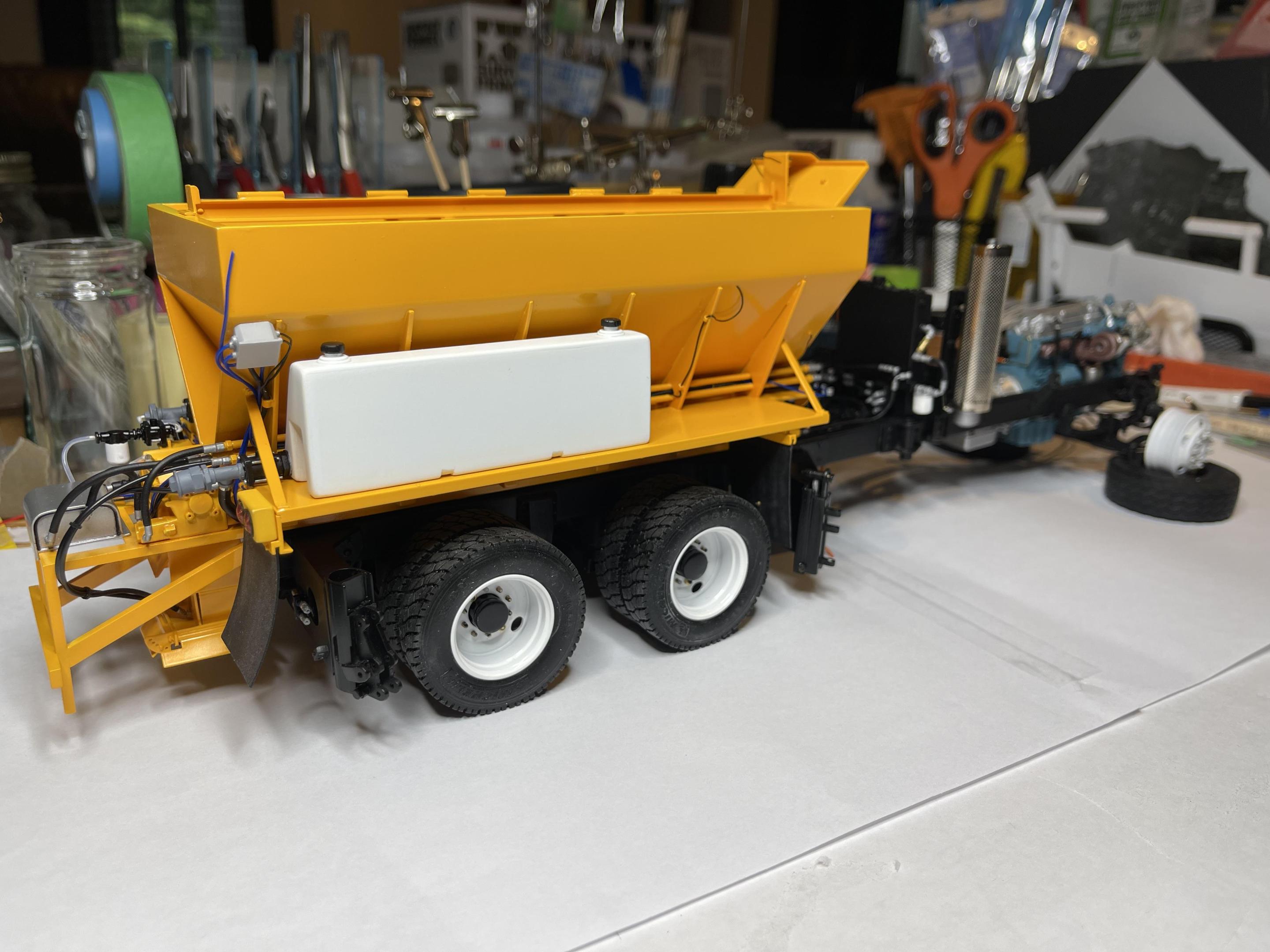

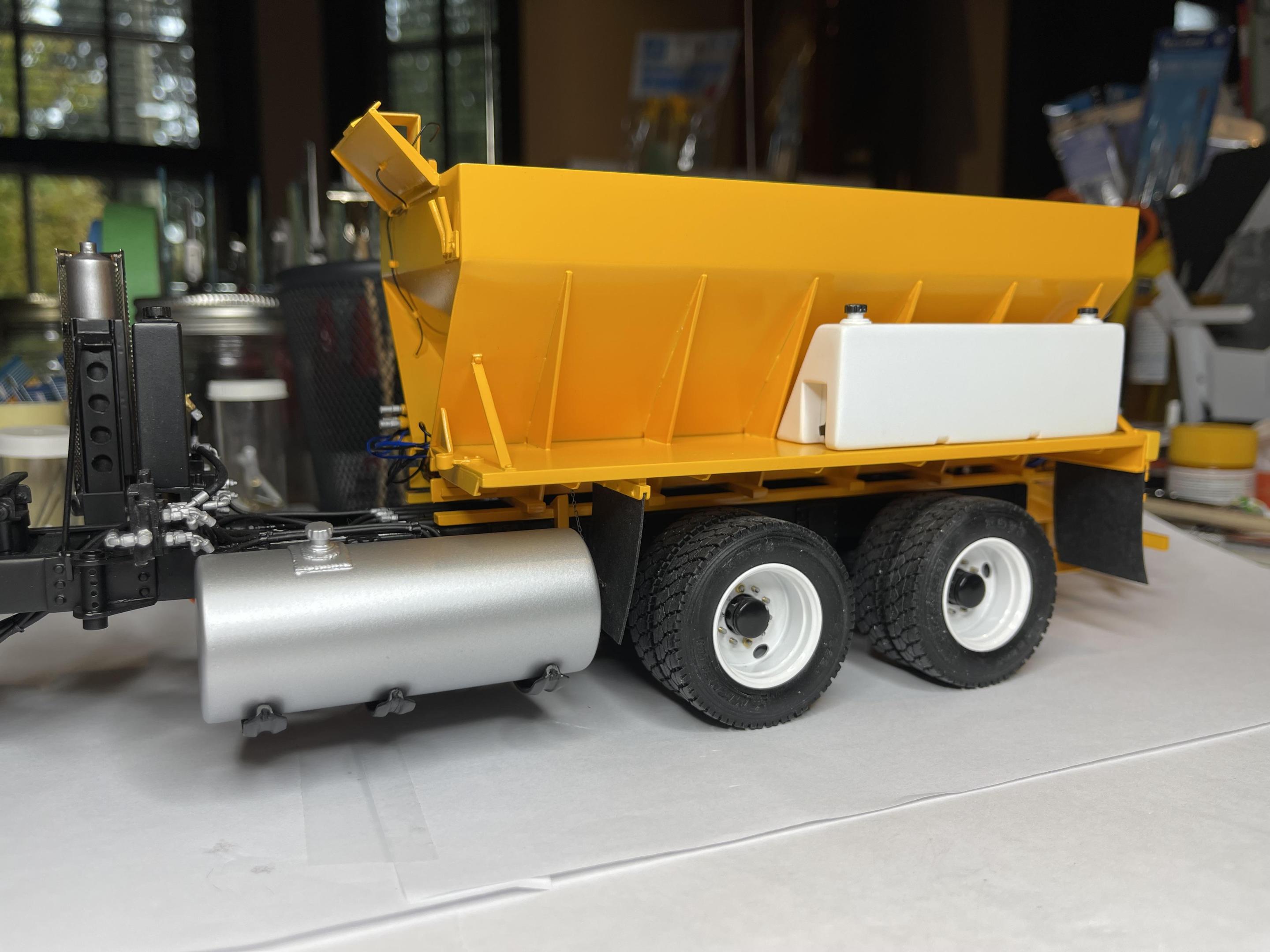

The model was at a bit of a crossroads. The truck's main frame attachments were done and I needed to get on with doing some painting and working on stuff above the frame - the sander, hydraulic tank and lines for all the plows, the engine. Apart from mocking the cab and hood in place, along the way, to see if everything fits, I'm saving the cab and hood for last - I find body work quite frustrating. So, thought a few pics of all the plows mocked up in place would be fitting, because they were going to get set aside in a padded box while the other frame work carried on (these pics were taken before the hard line hydraulic runs and compressed air tanks were added) these beautiful wheels will need to be painted, unfortunately! (the real truck has white rims) Thanks again for looking in - work on the sander will be next!

Charles, thanks for the kind words - this truck is a long overdue project - a great hobby to be involved with!

Thanks, Gary - I appreciate you checking in. Your new build looks to be quite the truck!

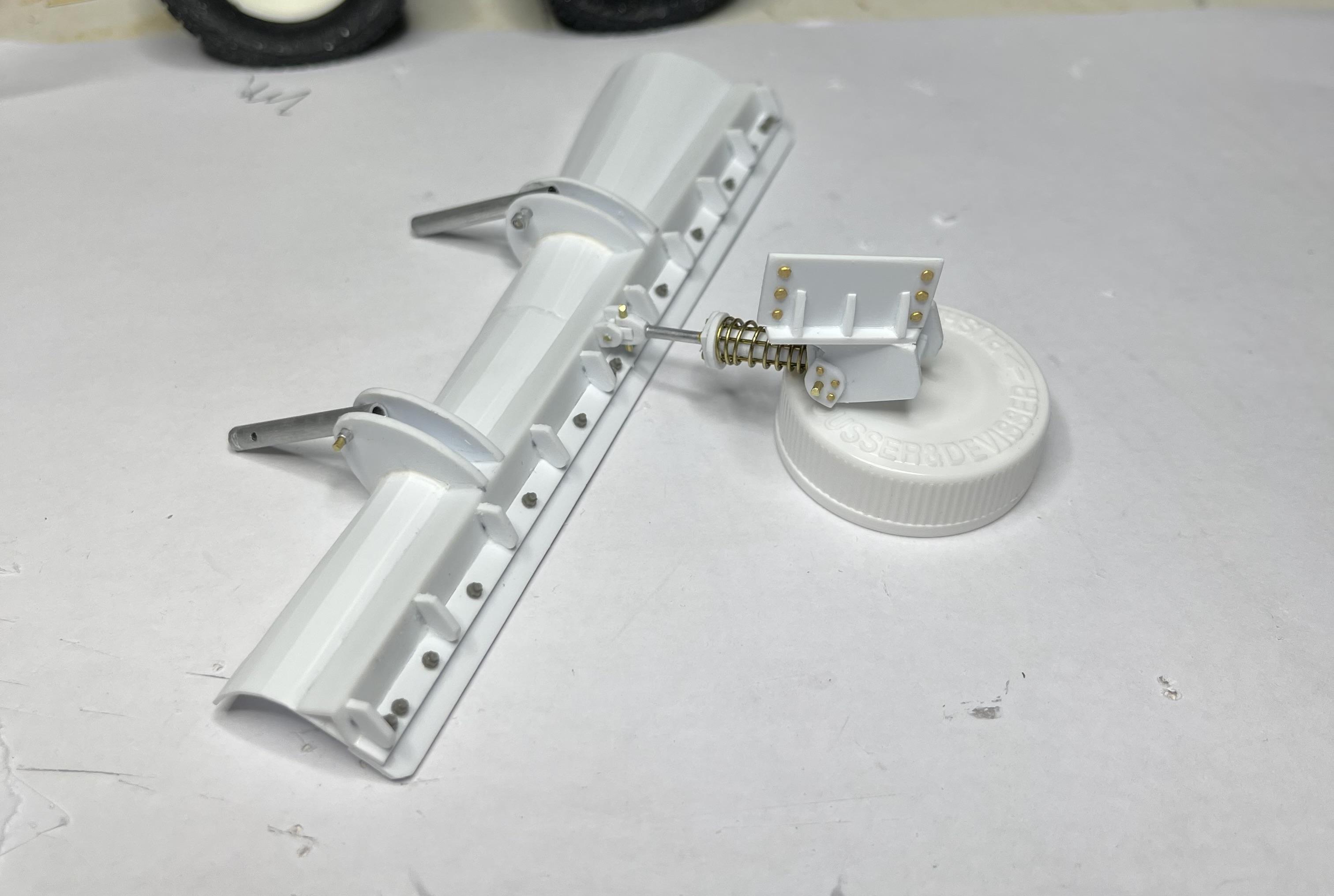

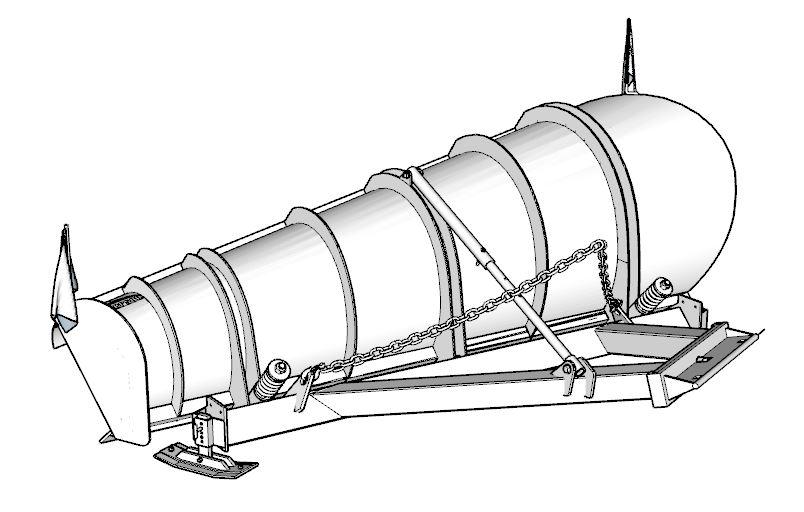

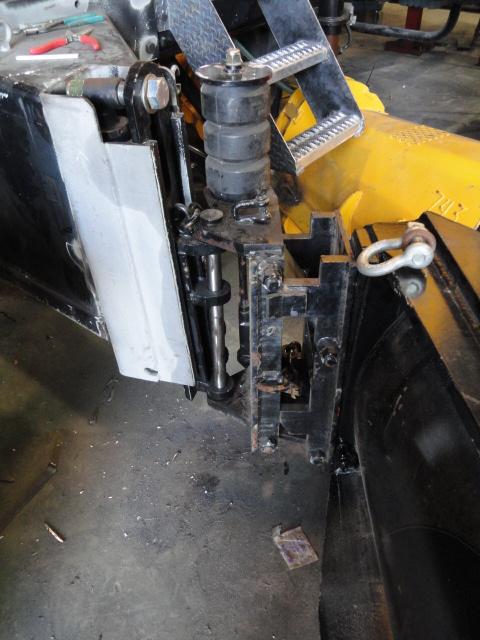

For many months last year, I’d been able to spend a lot of time working at my desk/bench (at this point in the WIP I was about three months into it). Still had lots of enthusiasm, so the final plow was underway! Started off with a printout of the front plow from my Sketchup model; worked on cutting out all the reinforcing ribs/arches for the moldboard frame; lined up the main ribs with brass rods, spaced per the template; attached the moldboard skin and worked on the anti-kickback spring units that mount on the push frame, and attach to the plow; made the manual, plow angle adjustment pole; test fit the plow on the bumper/lift group Sketchup printout - wouldn't have been able to make the arches correct without the patterns lining up the main arch pairs, to start the moldboard frame assembly moldboard completed, plow shoe adjustable mounts added to ends of push frame, anti-kickback dampener springs ready to be assembled aluminum tubing pole brace from push frame to center plow arches- the plow lift arm has a hook on it at the moment - need to change that to a U shaped clevis at some point, and add lifting chains between the clevis and the ears on the push frame some small details left to add, but basically finished (and need to trim the ends off the plow shoe mounting plates) will get to the sander body in the next few posts
