Scale-Master Posted October 3, 2022 Author Share Posted October 3, 2022 Now that the lower lights and the "grille" are installed, the rest of the underhood wiring could be done. Quote Link to comment Share on other sites More sharing options...
absmiami Posted October 3, 2022 Share Posted October 3, 2022 1 hour ago, Scale-Master said: Now that the lower lights and the "grille" are installed, the rest of the underhood wiring could be done. The underside of scale bonnets has always been - the devil’s playground - this is really really good stuff … 2 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 3, 2022 Author Share Posted October 3, 2022 This goes in the "done pile" for now… The plug for the lights that connects to the receptacle on the firewall is hanging down at the rear of the wheel well. 2 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 19, 2022 Author Share Posted October 19, 2022 The door windows are finished and installed. The front sections are fixed so there is a black seal around them. There are no seals for the rear flip out sections. There's also a little handle inside for each of those. Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted October 19, 2022 Share Posted October 19, 2022 Truly impressive. Looks like a real car being prepped. Quote Link to comment Share on other sites More sharing options...
Big John Posted October 19, 2022 Share Posted October 19, 2022 What a tidy package, Love the alternator drive of the axle shaft! 1 Quote Link to comment Share on other sites More sharing options...
roadkill Posted October 19, 2022 Share Posted October 19, 2022 Ha, I finally worked it out, this isn't a scale model at all, it's a full size car that your'e restoring and passing it off as a model, that's the only explanation I can come up with for the other worldly craftsmanship and the absolutely insane attention to detail, this build has been an honour to follow along, you truly are the, "Scale-Master", very well done sir, I continue to follow with humble admiration. From the left coast of the big island down under. 3 Quote Link to comment Share on other sites More sharing options...
Bugatti Fan Posted October 19, 2022 Share Posted October 19, 2022 Fantastic miniature taking shape there Mark! I have been following this build with interest. It is amazing what you are doing to what is now quite an elderly kit that still stands up in its own right as being a good kit from back in the day. 1 Quote Link to comment Share on other sites More sharing options...
clipper57 Posted October 19, 2022 Share Posted October 19, 2022 I am so impressed with your work unbelievable. 1 Quote Link to comment Share on other sites More sharing options...
mikemodeler Posted October 20, 2022 Share Posted October 20, 2022 I continue to be amazed at the level of detail, accuracy and cleanliness of this build. 1 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 21, 2022 Author Share Posted October 21, 2022 Thanks guys, I really do appreciate the kind words. Time to install the main electrical wiring and a bunch of scratch-built subassemblies. I had already made the wires with ends and the brass guide clips. I installed the fuel pump, regulator & filters and ran the oil lines to the engine. The battery & hold down and the dipstick were installed too. I also added a half dozen more suspension parts/fasteners and the exhaust. This is still dry assembled and not everything is connected, just making sure all the lines are the correct length and that there are no interference issues. It's getting packed pretty tightly… 2 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 21, 2022 Author Share Posted October 21, 2022 Today's project was to make and install the rear brake lines. These are brackets for the hard lines out to the soft lines. Fabricated from sheet brass. I made the Tee and the clamp and bent the lines today, but I had machined the fittings when I was making the front brake lines. I had to tear down the right rear suspension and pull the right side header off to install the lines. Sure made installing the lines a lot easier… The soft lines are vinyl tubing. Quote Link to comment Share on other sites More sharing options...
absmiami Posted October 22, 2022 Share Posted October 22, 2022 Yup 1 Quote Link to comment Share on other sites More sharing options...
Big John Posted October 22, 2022 Share Posted October 22, 2022 SM? are you using the guitar strings for brake lines? Spectacular work. 1 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 28, 2022 Author Share Posted October 28, 2022 Yes John. Grounding strap for the engine to chassis. Will it be seen when it's in installed? Maybe. Doesn't matter. 2 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 28, 2022 Author Share Posted October 28, 2022 Another dozen and a half nuts, bolts and washers were machined and installed for the rear suspension. The rear section of the clutch line was added and the battery has been grounded. It's barely visible… Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 28, 2022 Author Share Posted October 28, 2022 Back to the doors… I installed the gas struts and made the mounting hardware. I think they are done. Quote Link to comment Share on other sites More sharing options...
cobraman Posted October 28, 2022 Share Posted October 28, 2022 Your attention to detail is second to none. Going to be a beautiful model. 1 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 29, 2022 Author Share Posted October 29, 2022 Thanks Ray! The exhaust system and rear tray are installed. The dashboard assembly is installed. Getting closer to begin mounting some of the body panels to the tub… Quote Link to comment Share on other sites More sharing options...
Phildaupho Posted October 29, 2022 Share Posted October 29, 2022 WOW WOW WOW 1 Quote Link to comment Share on other sites More sharing options...

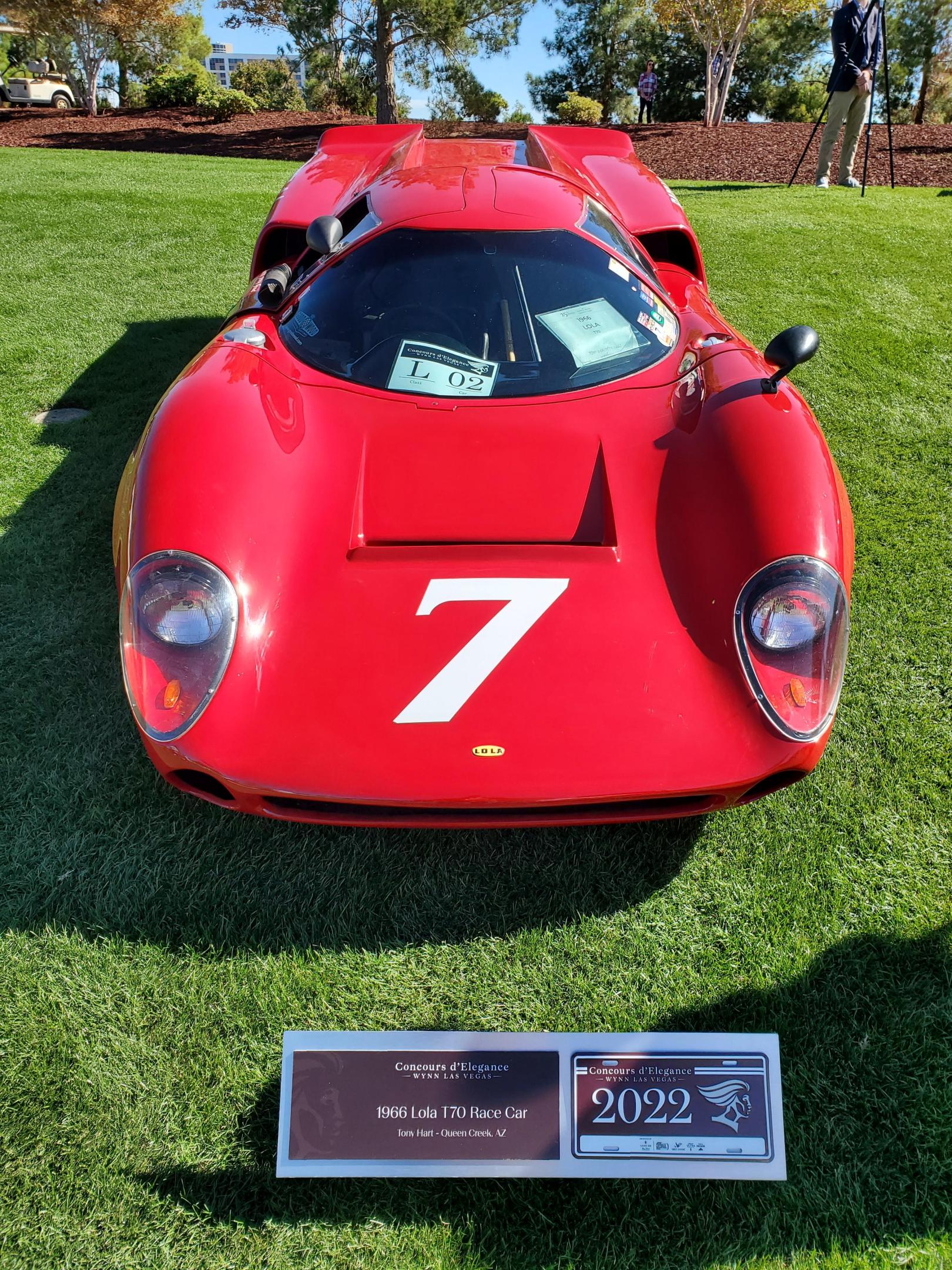

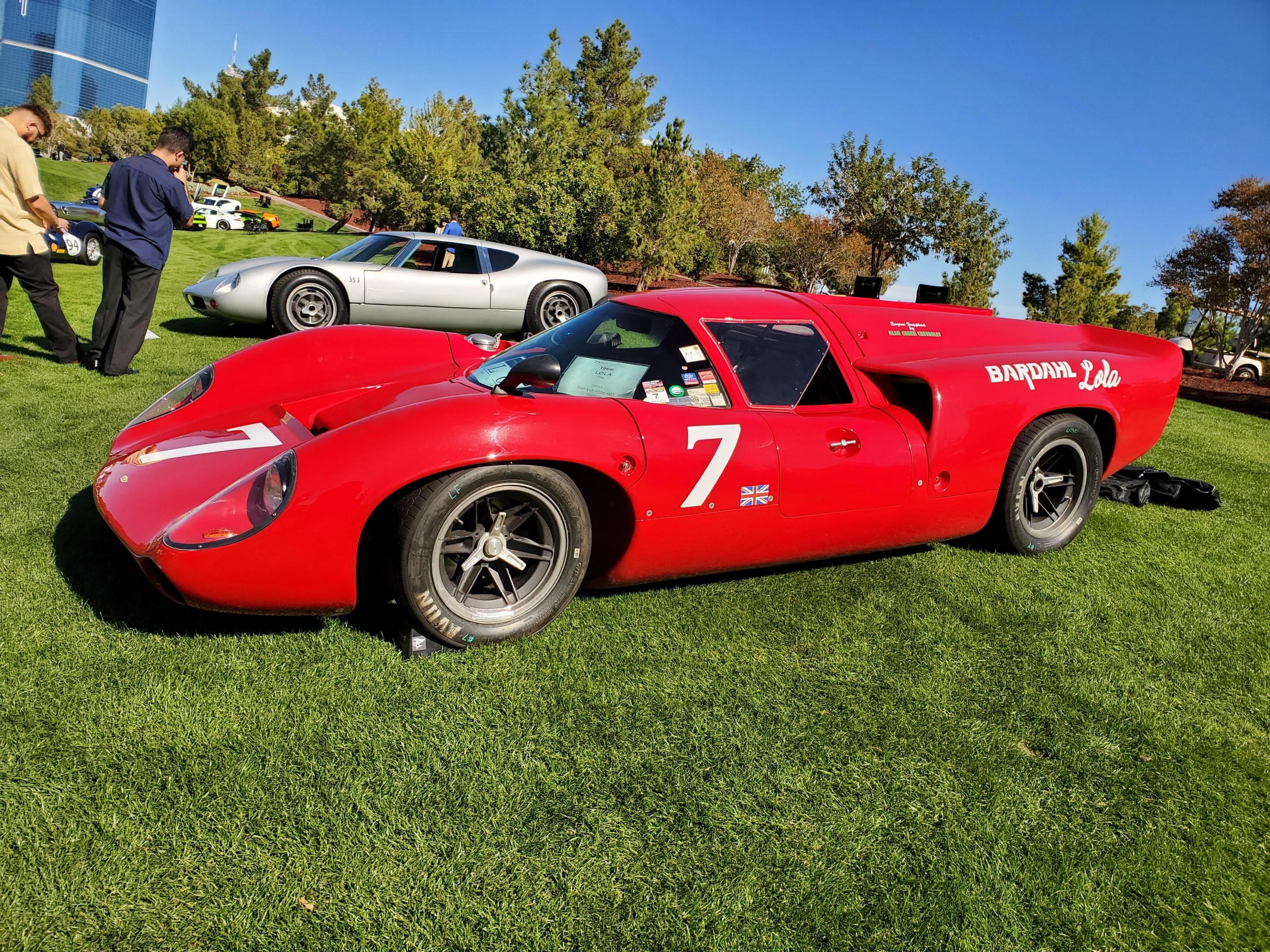

ea0863 Posted October 30, 2022 Share Posted October 30, 2022 (edited) Mark, you are definitely setting a high-bar with this build. The only thing missing is the smell of racing fuel and exhaust! BTW, I was thinking of your build yesterday when I was at the Las Vegas Concours D'Elegance. I had never seen a T-70 in the flesh before. Here's a couple of pictures and a link to the other cars that were there. Edited October 30, 2022 by ea0863 1 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted October 31, 2022 Author Share Posted October 31, 2022 Those are nice photos EMRE, thanks for sharing them! Another significant step forward, the last section of the body has had the paint cut and polished. The insides are painted as well. Once that is dry it will get some wax. (It's quite the dust magnet right now.) 1 Quote Link to comment Share on other sites More sharing options...
Scale-Master Posted November 3, 2022 Author Share Posted November 3, 2022 Several people have pointed out the risks of using the kit supplied air duct hose as it has a propensity for melting plastic over time. While I was already aware of this issue, (the ones in this kit melted some of the parts well before I started building it), and have been lucky in the past, I decided I have too much invested to take that risk even with the precautions taken on this car. I also was not keen on the color of them. So I pulled them off and fabricated new ones from wire and white glue. I wound the wire around the proper sized bolt for the diameter I wanted. After the glue dried I made connectors with shrink tubing. I painted them with orange R/C car (Lexan) paint and gave them a wash of Tamiya Smoke with Flat Base mixed in to it. Plenty of flex to route them where they need to go and a direct retrofit to boot. 2 Quote Link to comment Share on other sites More sharing options...
absmiami Posted November 3, 2022 Share Posted November 3, 2022 Well played … 1 Quote Link to comment Share on other sites More sharing options...
Big John Posted November 5, 2022 Share Posted November 5, 2022 Question, after you wound the wire on the bolt did you apply the glue then or after removing the bolt, or use a release of some sort before working the bolt out? Still Amazed! 1 Quote Link to comment Share on other sites More sharing options...
