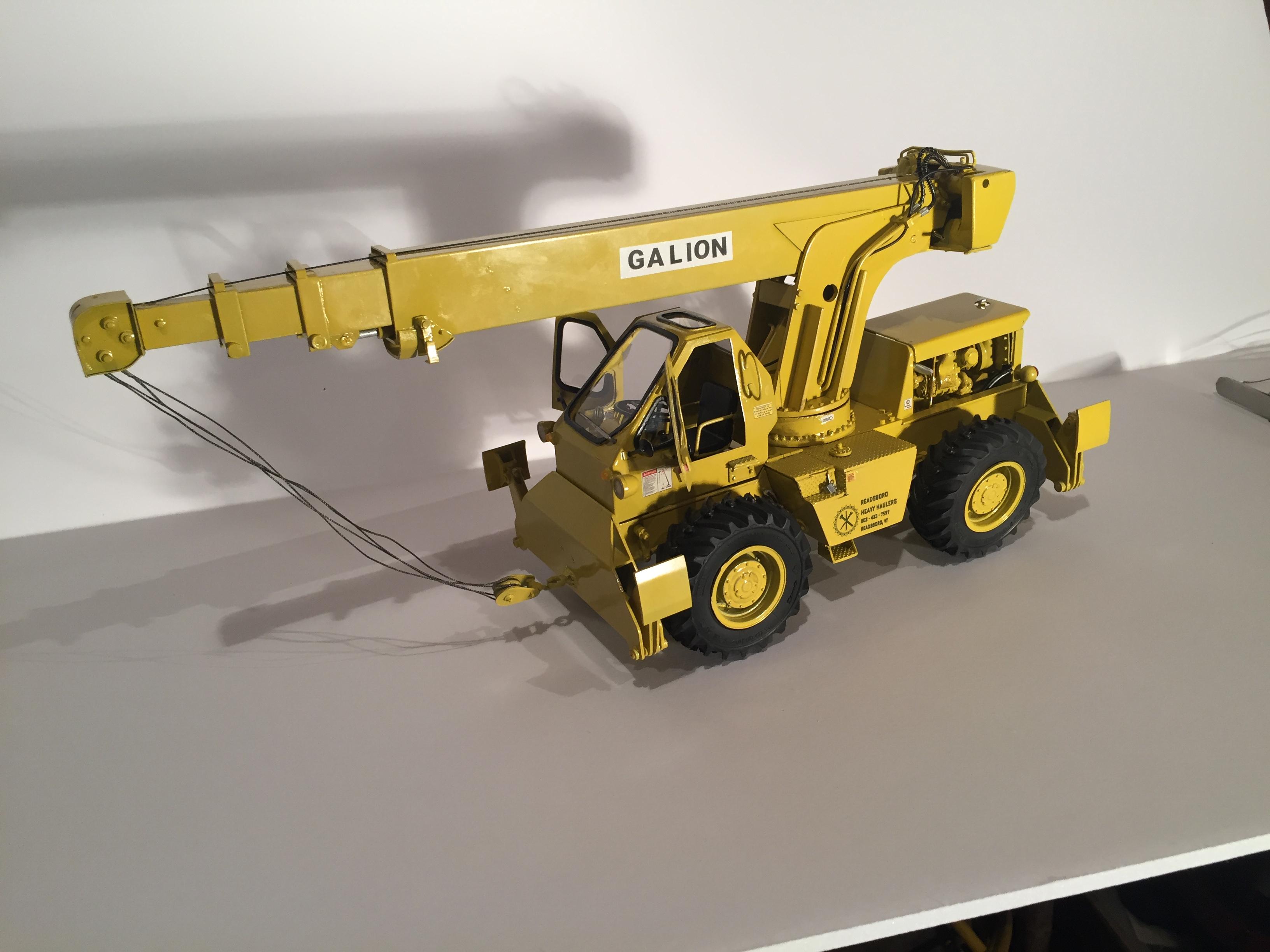

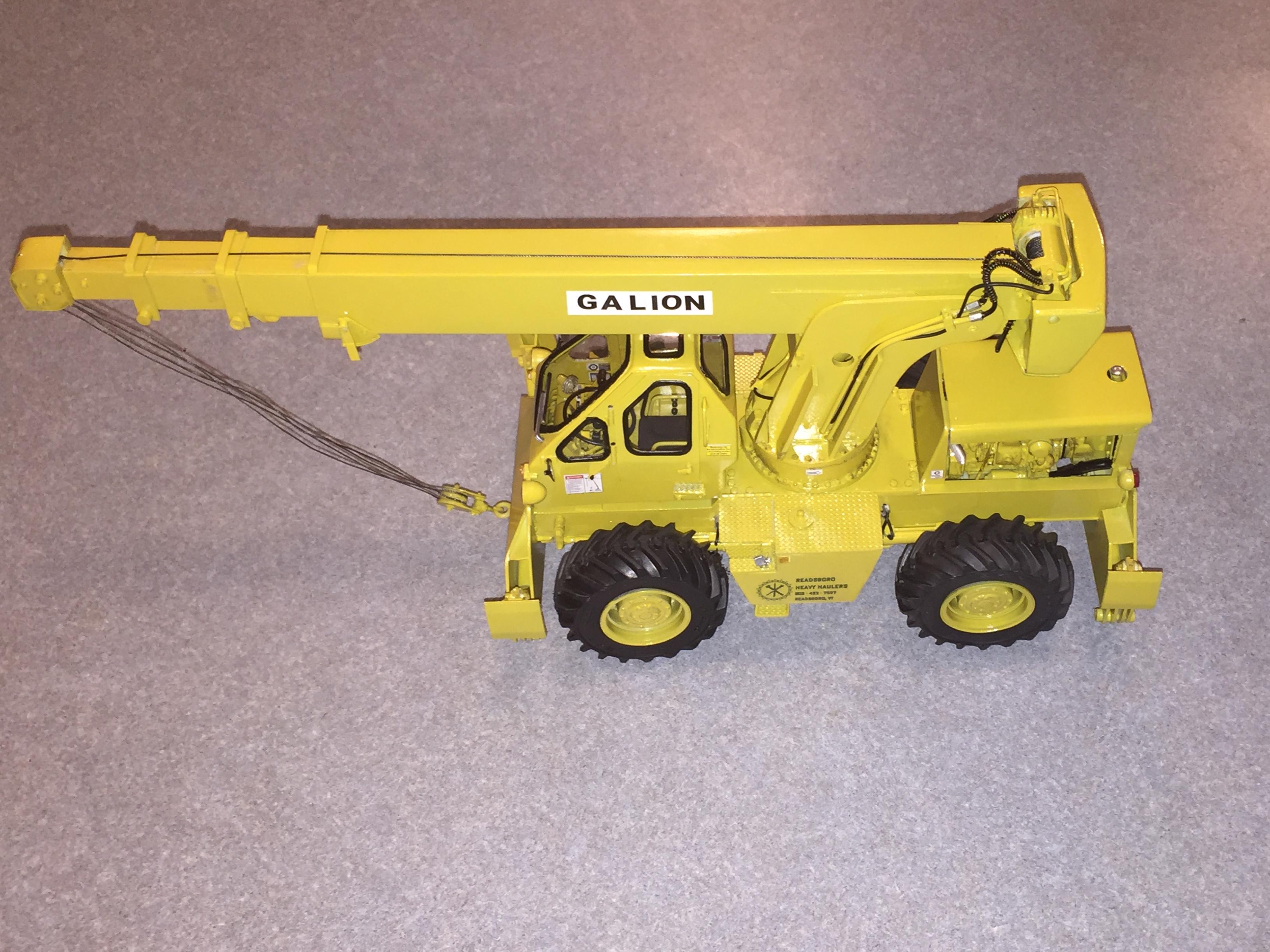

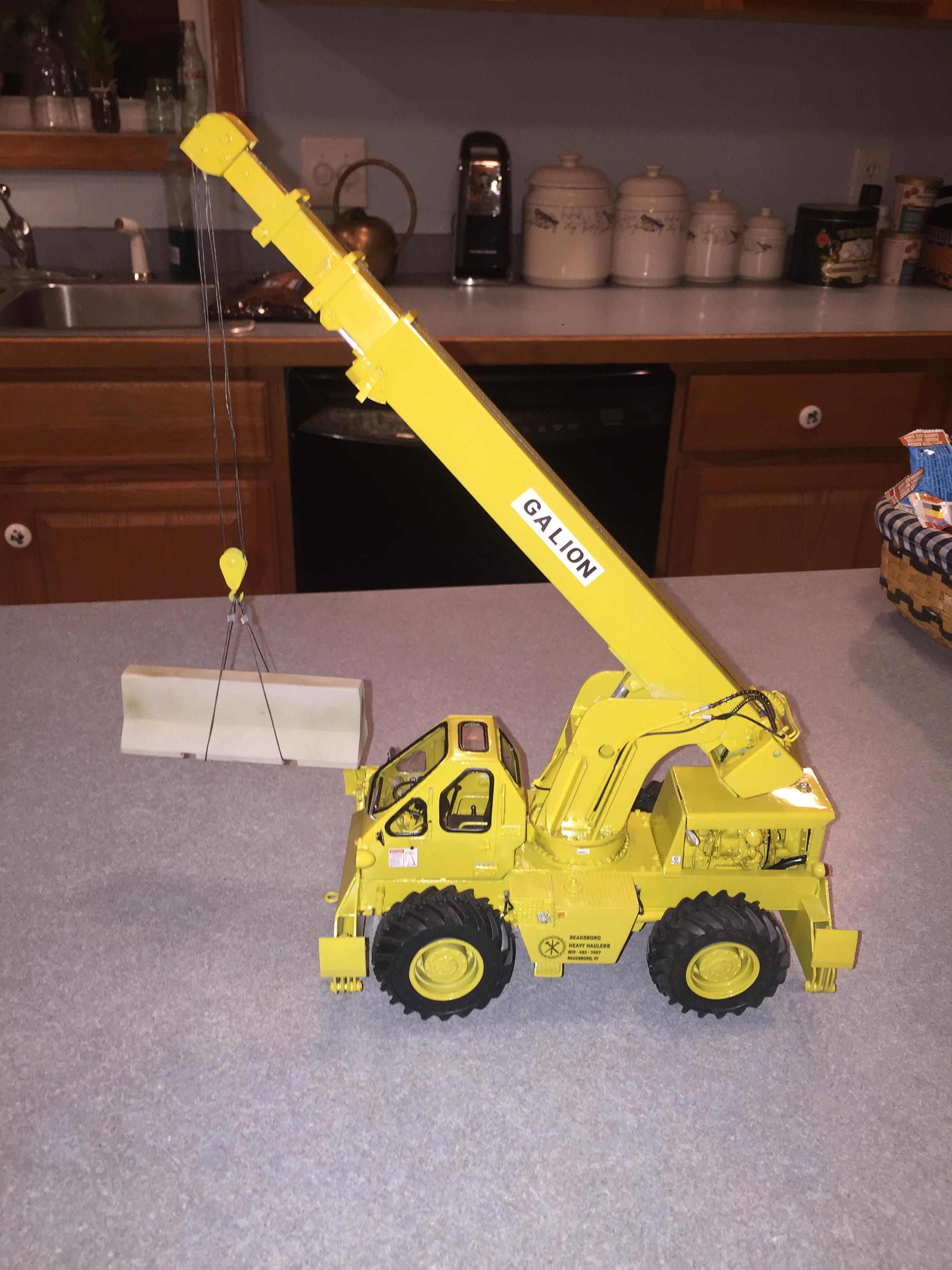

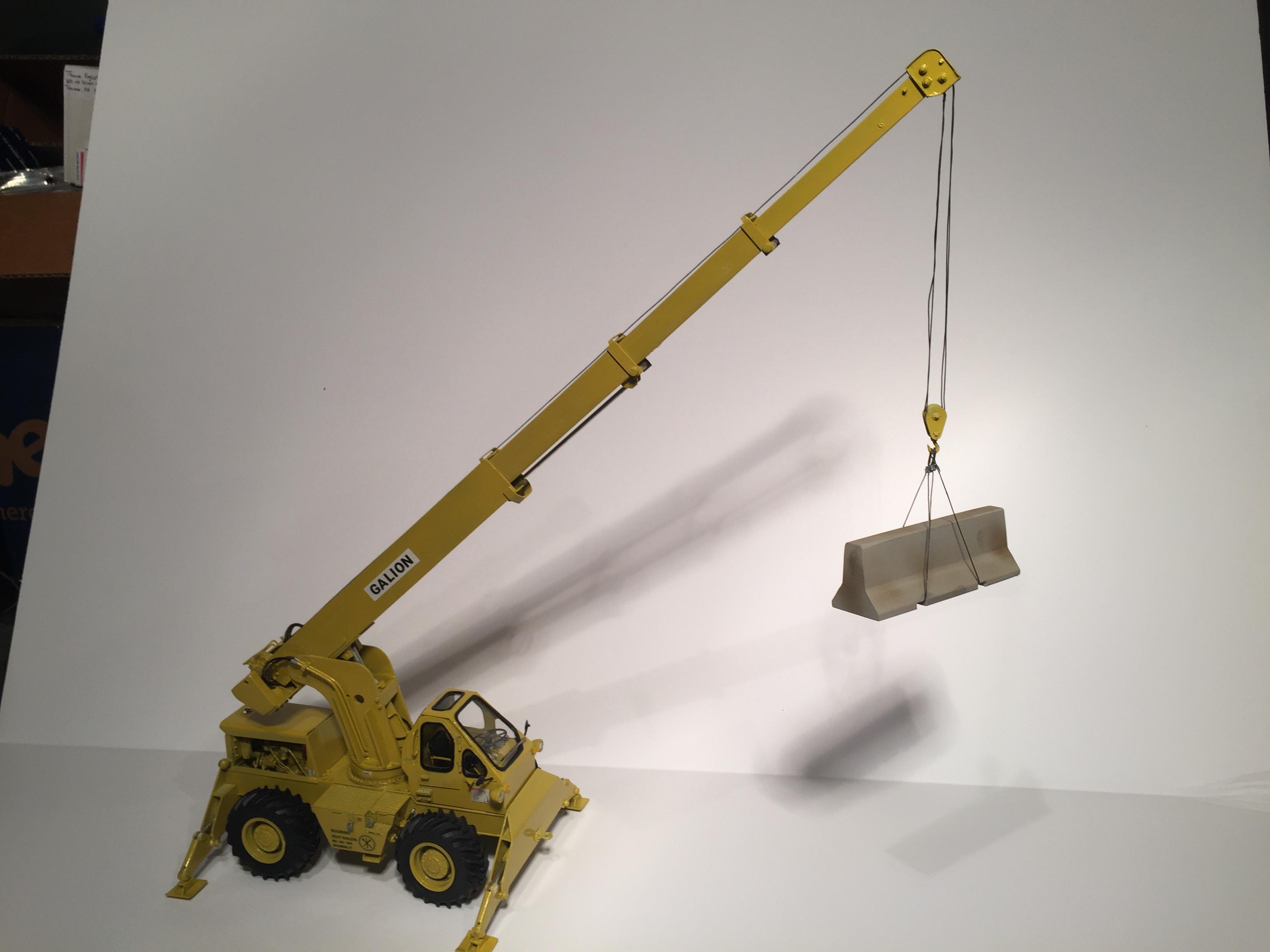

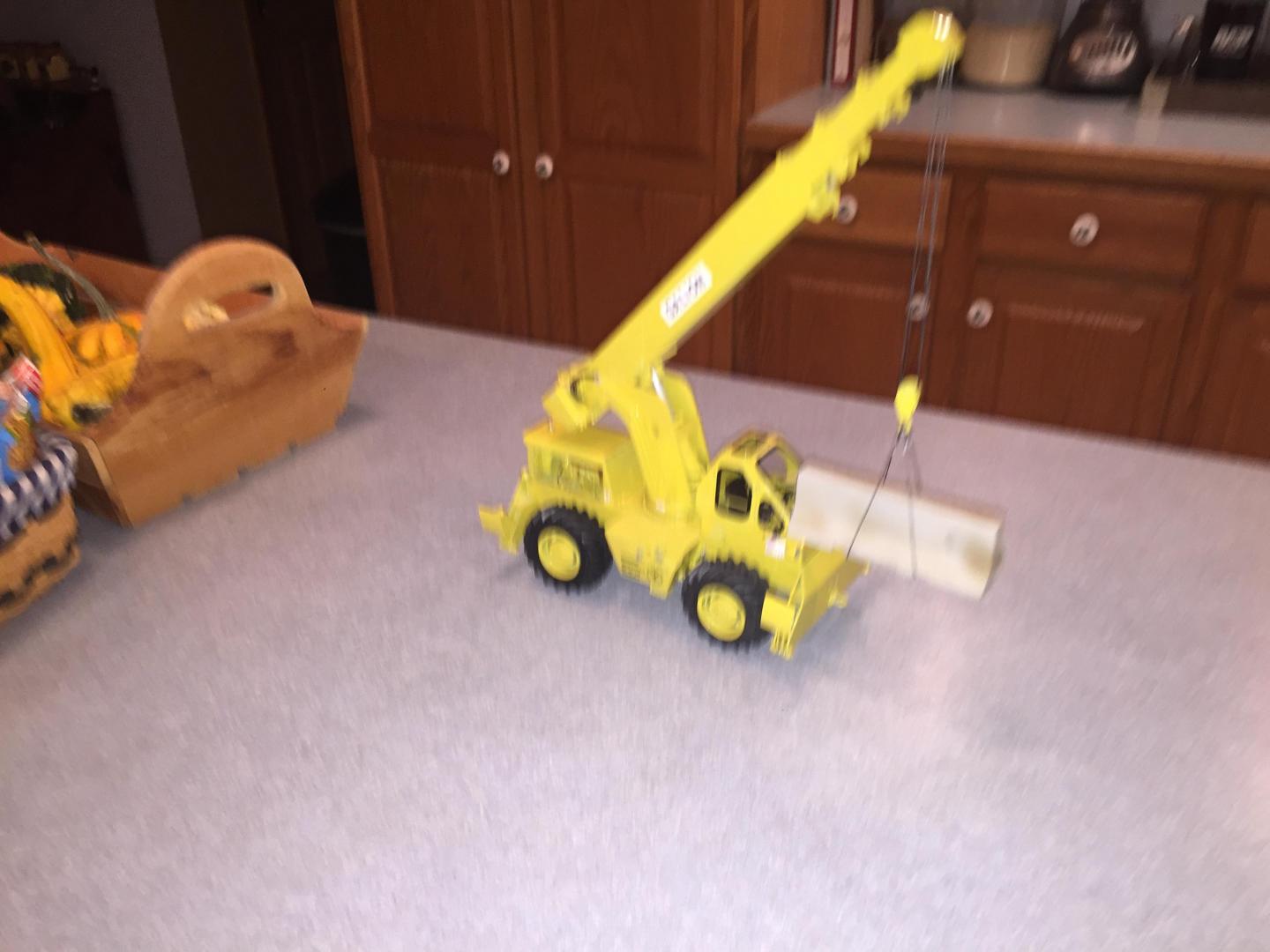

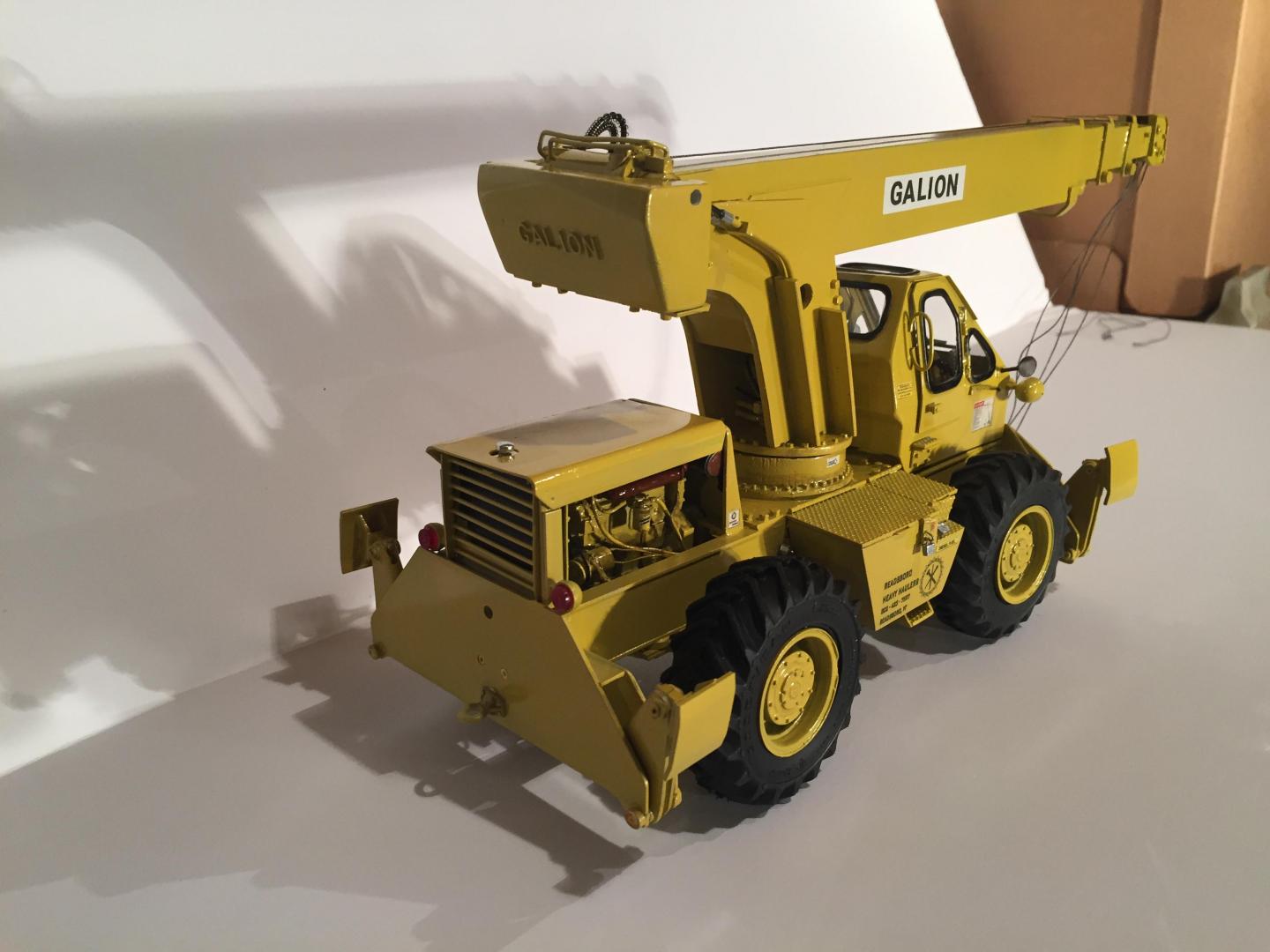

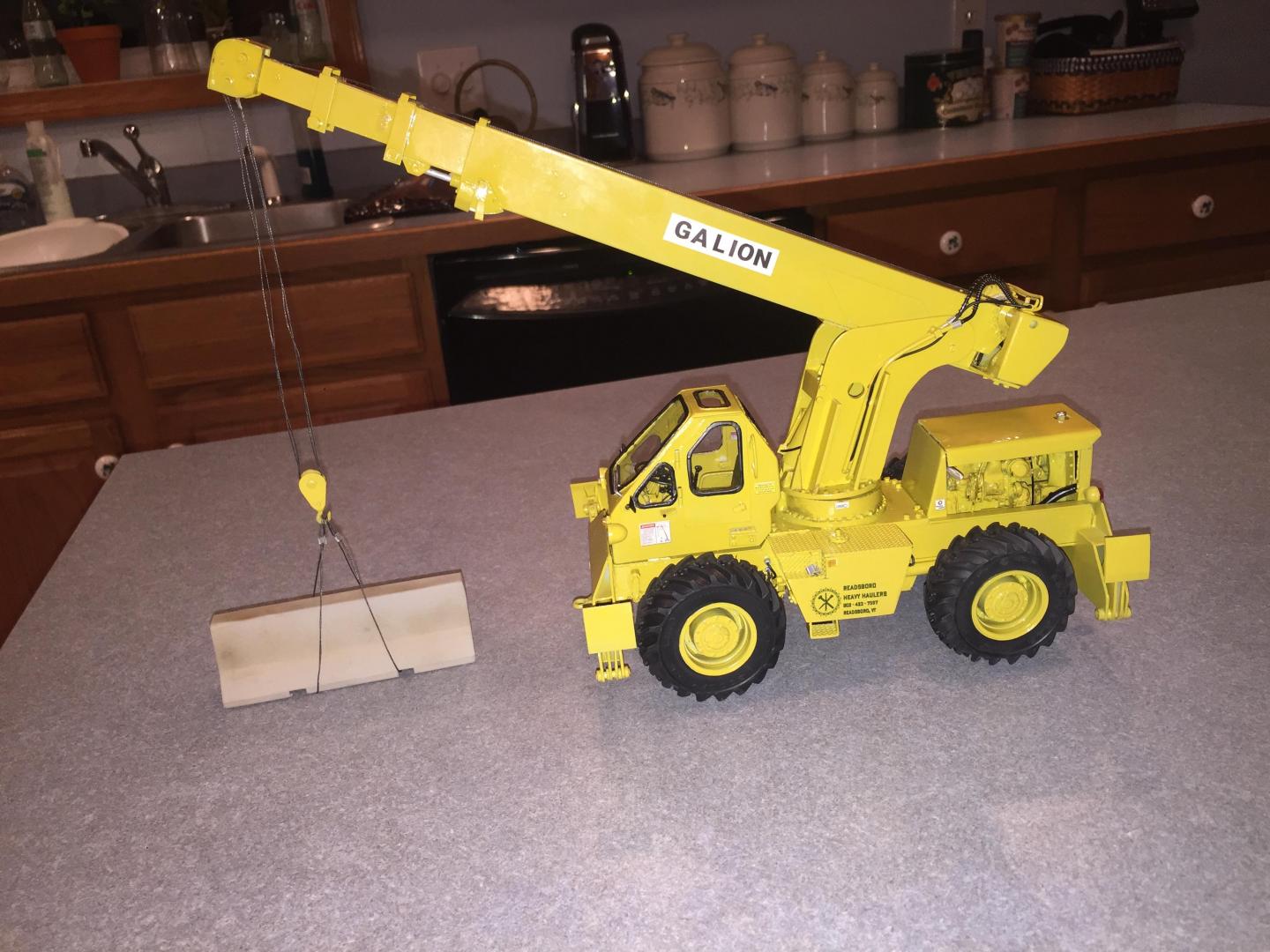

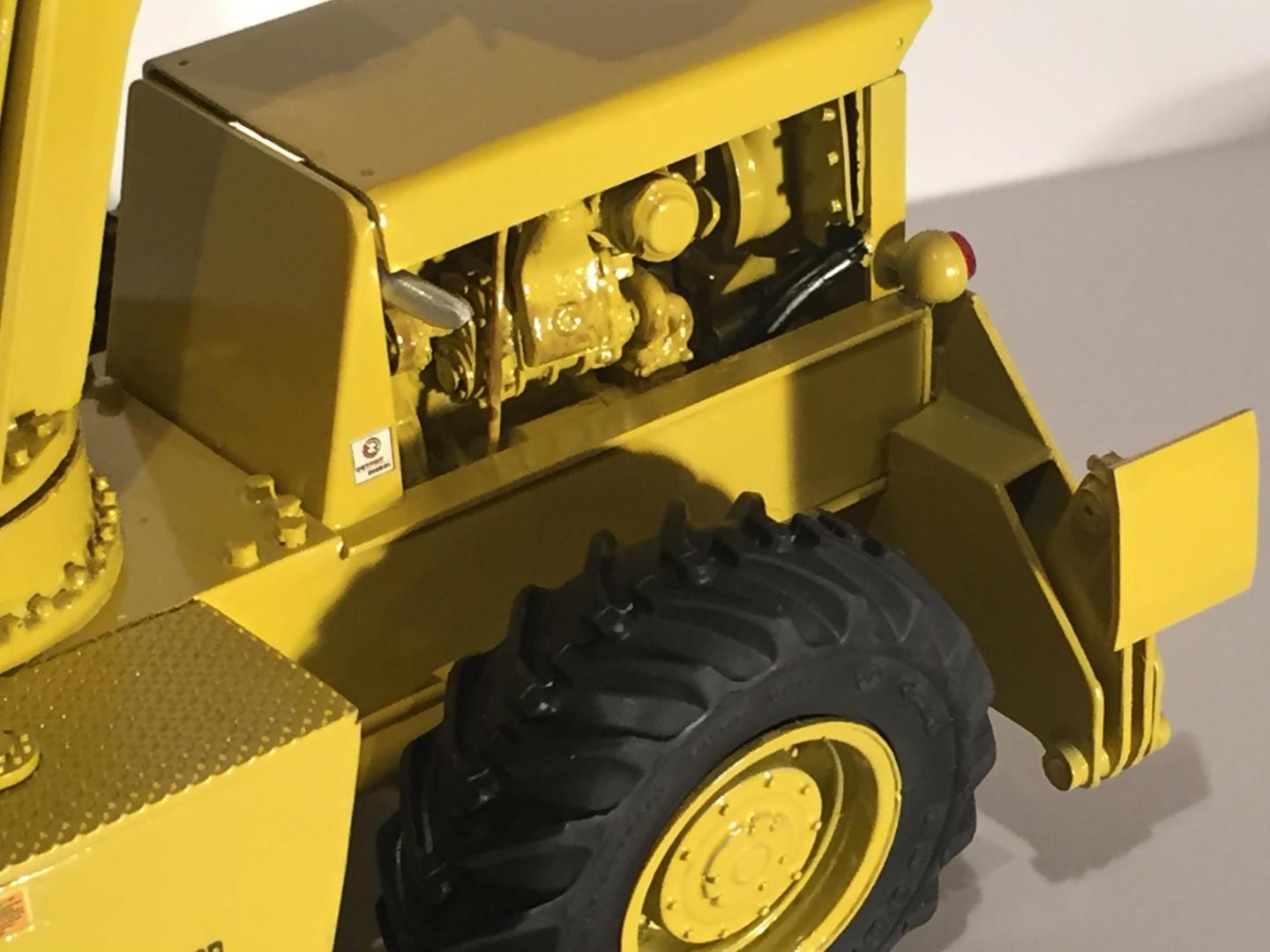

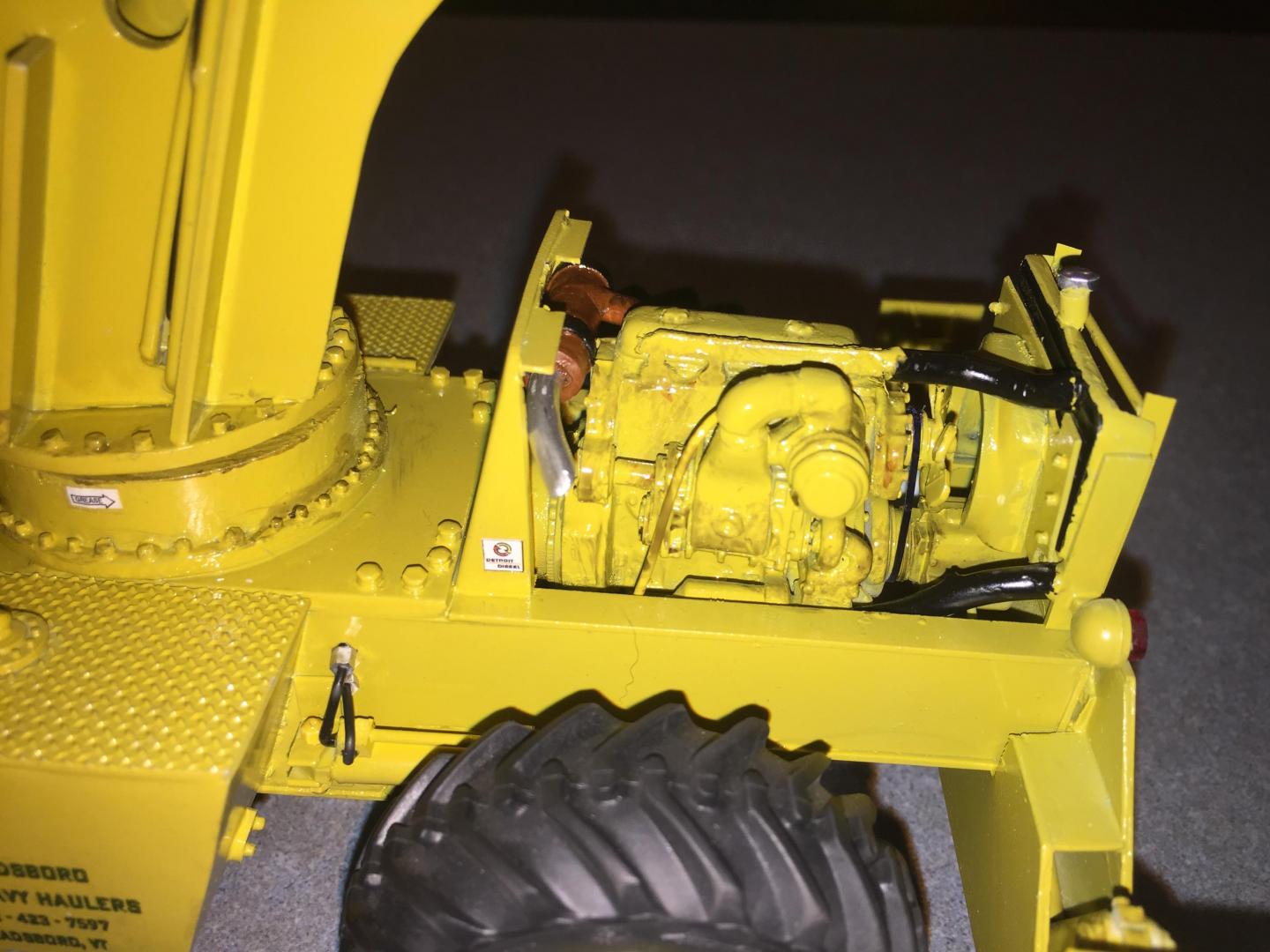

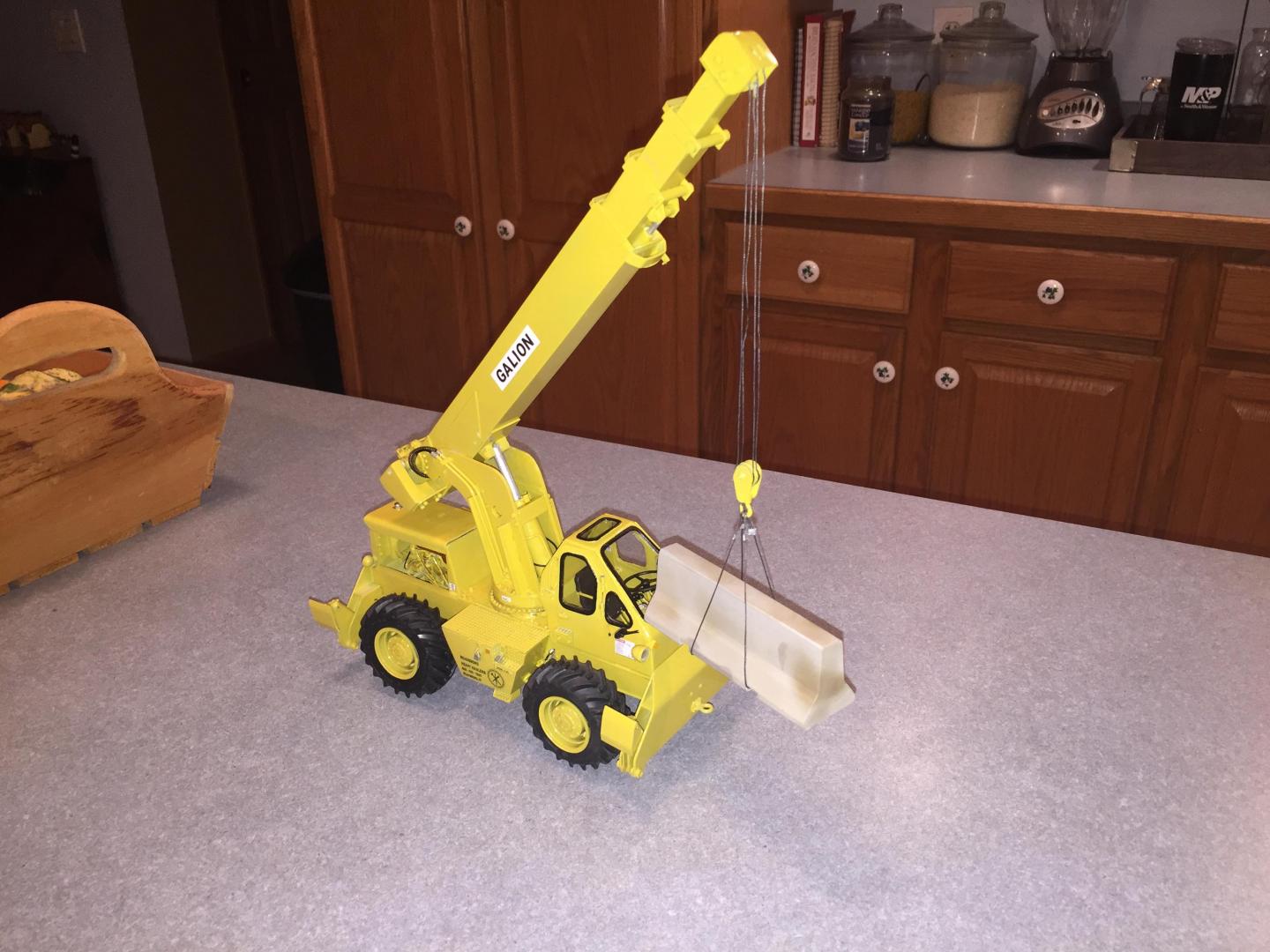

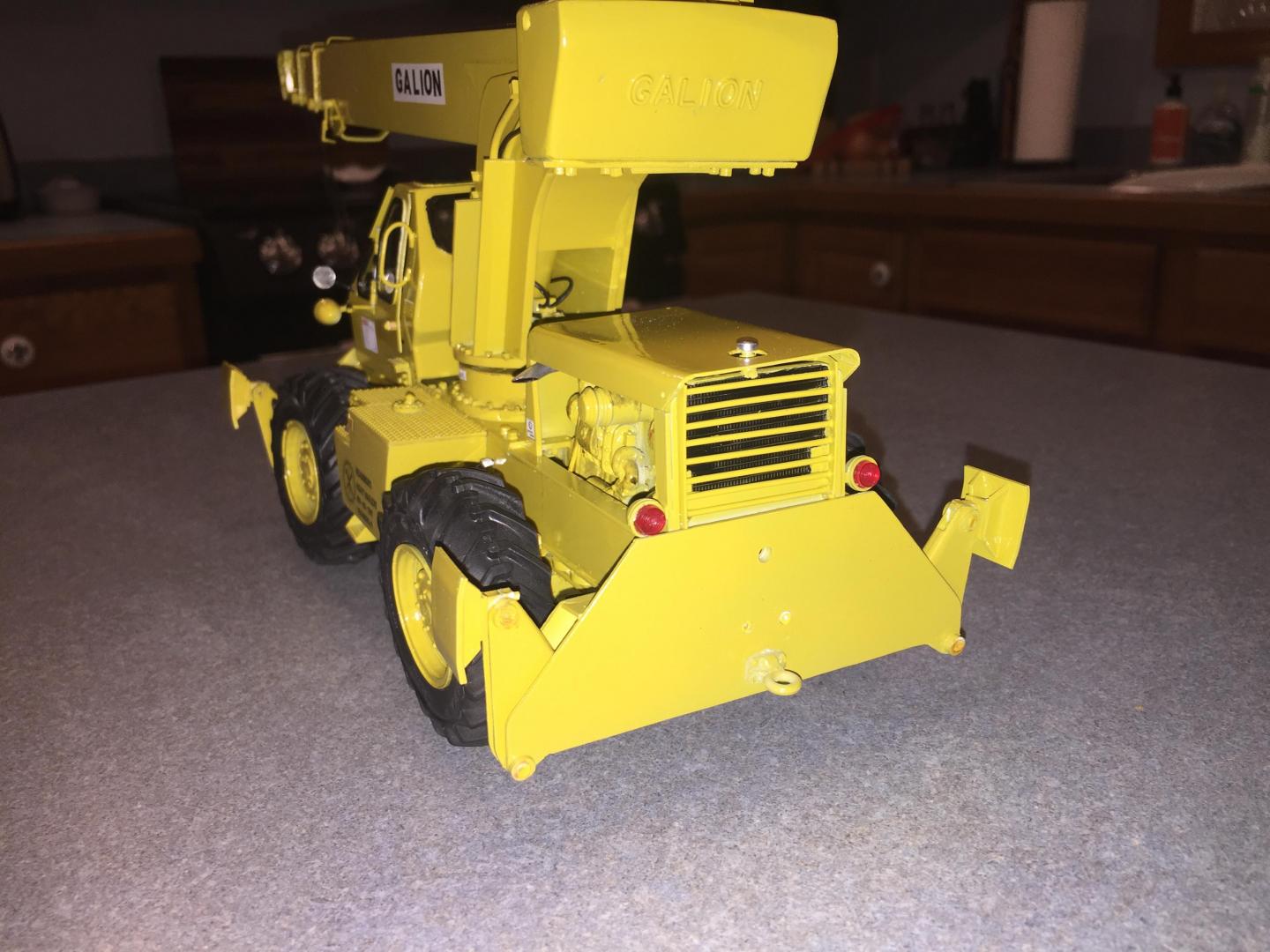

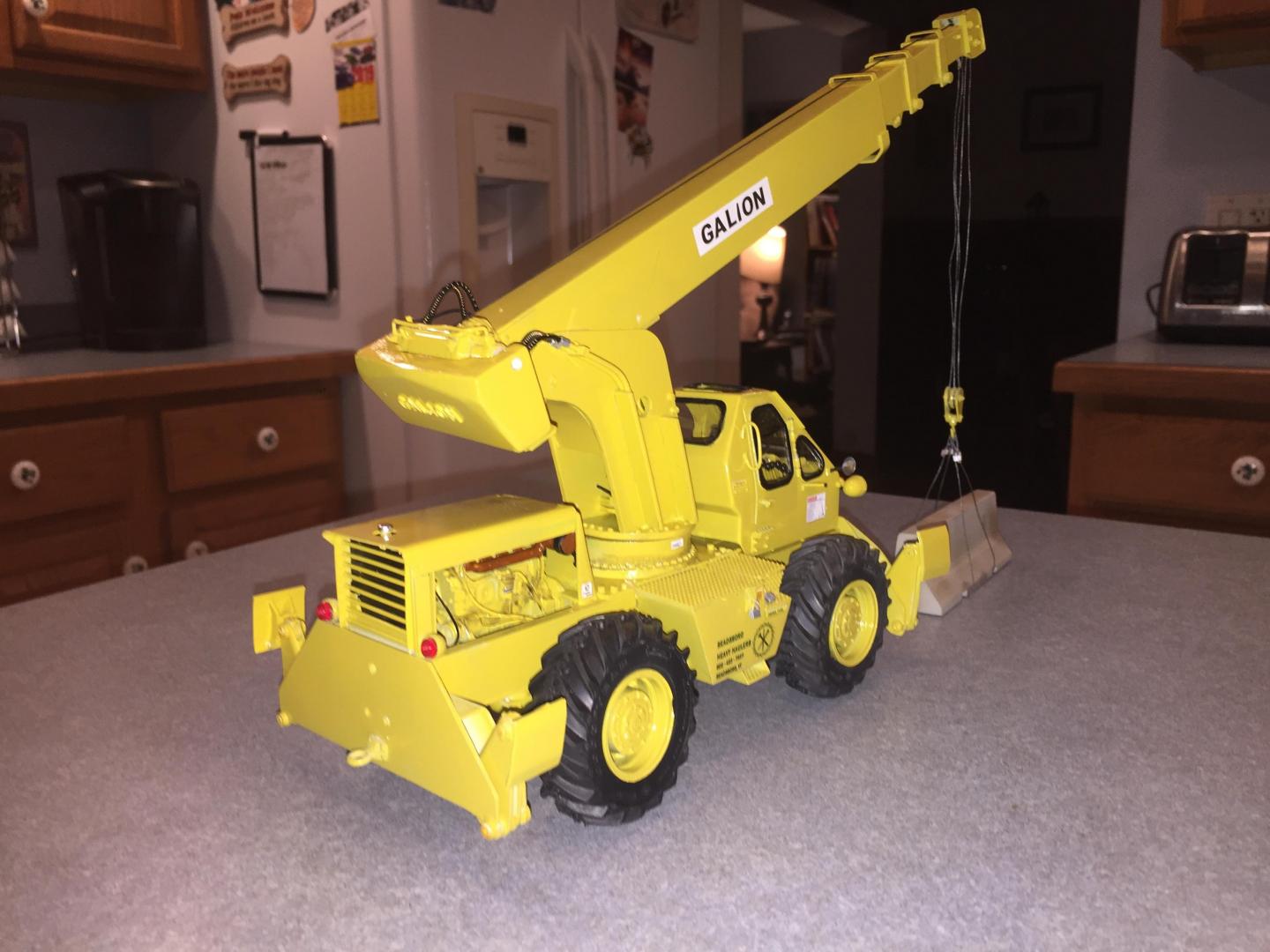

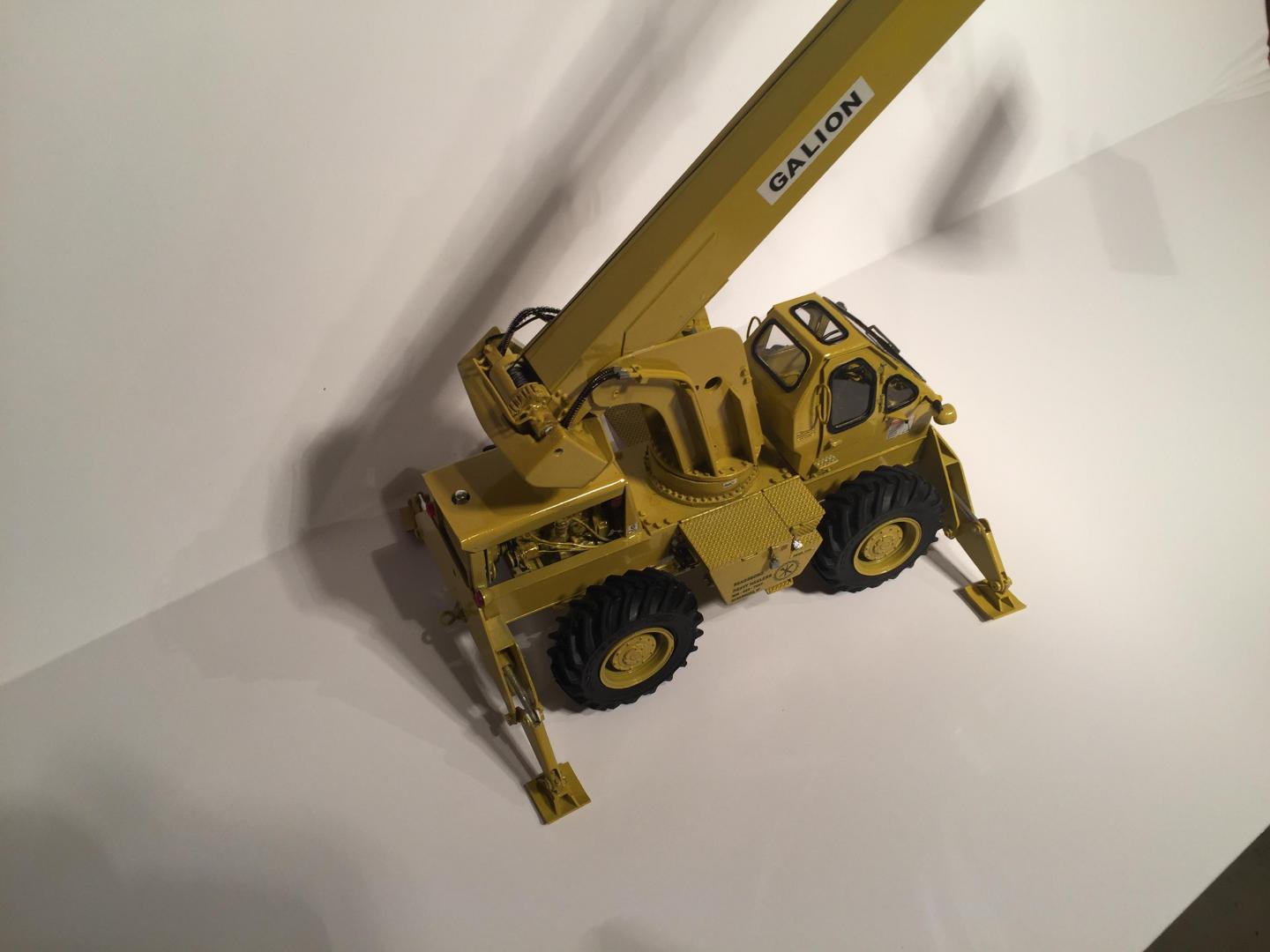

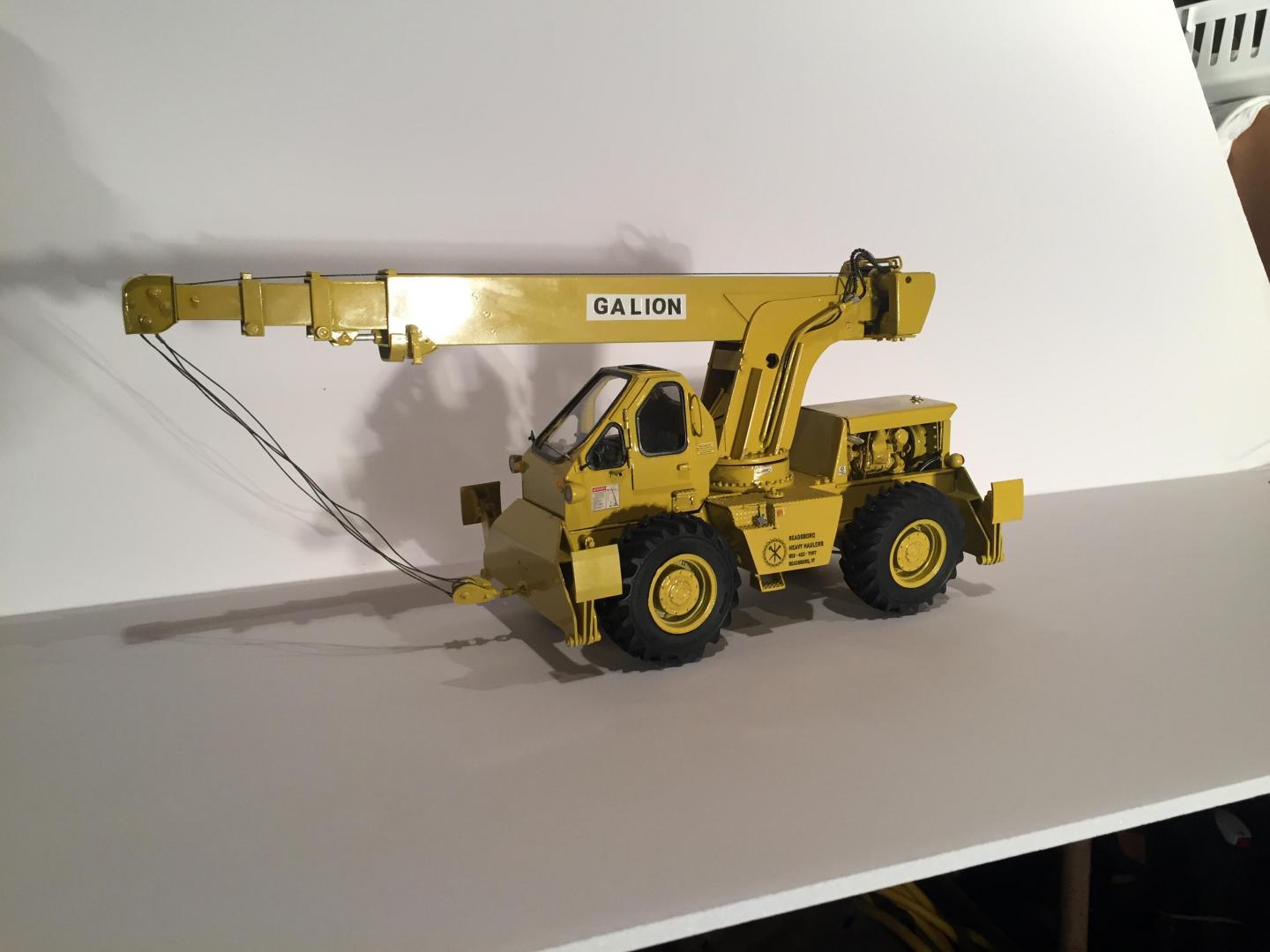

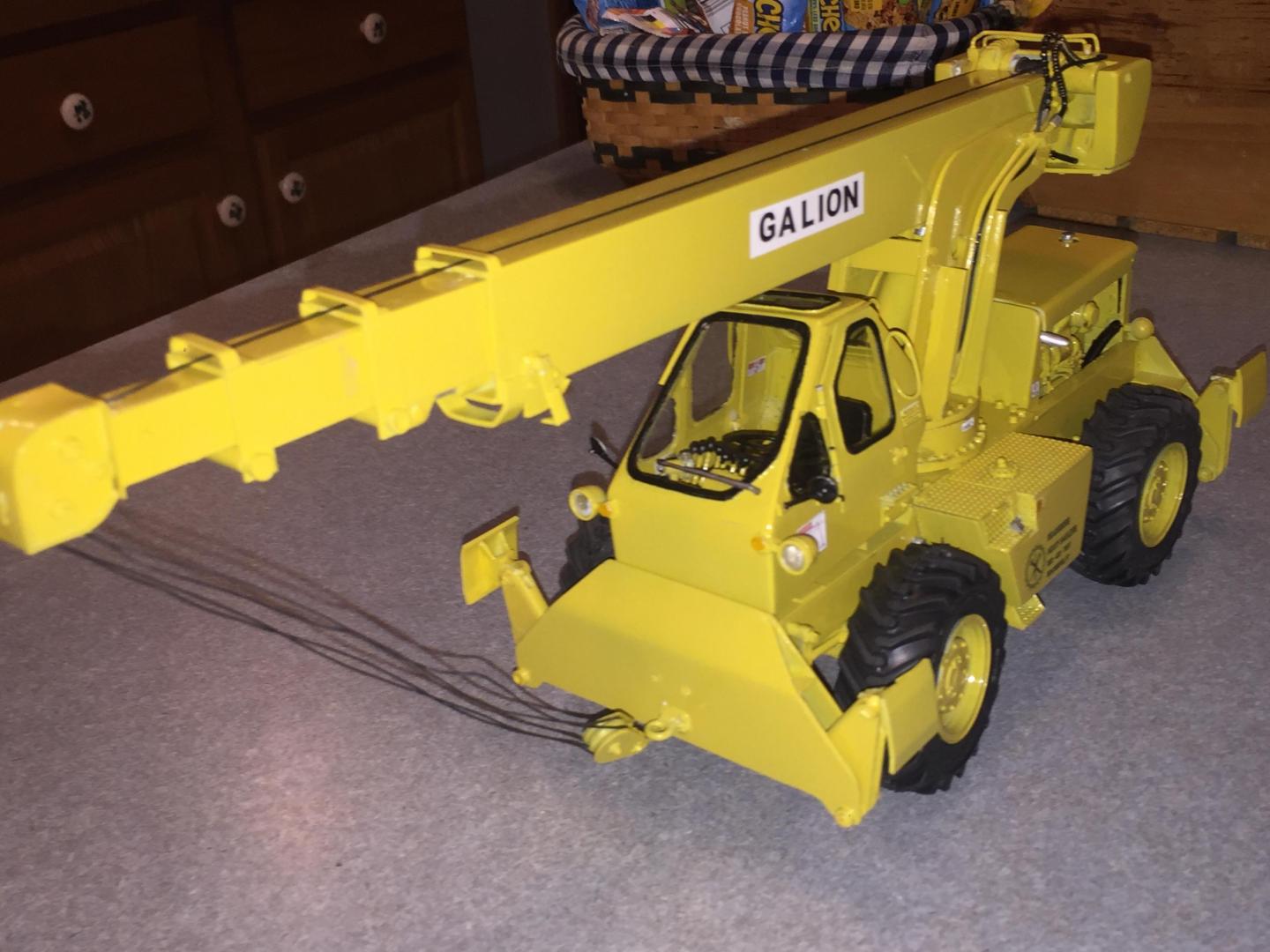

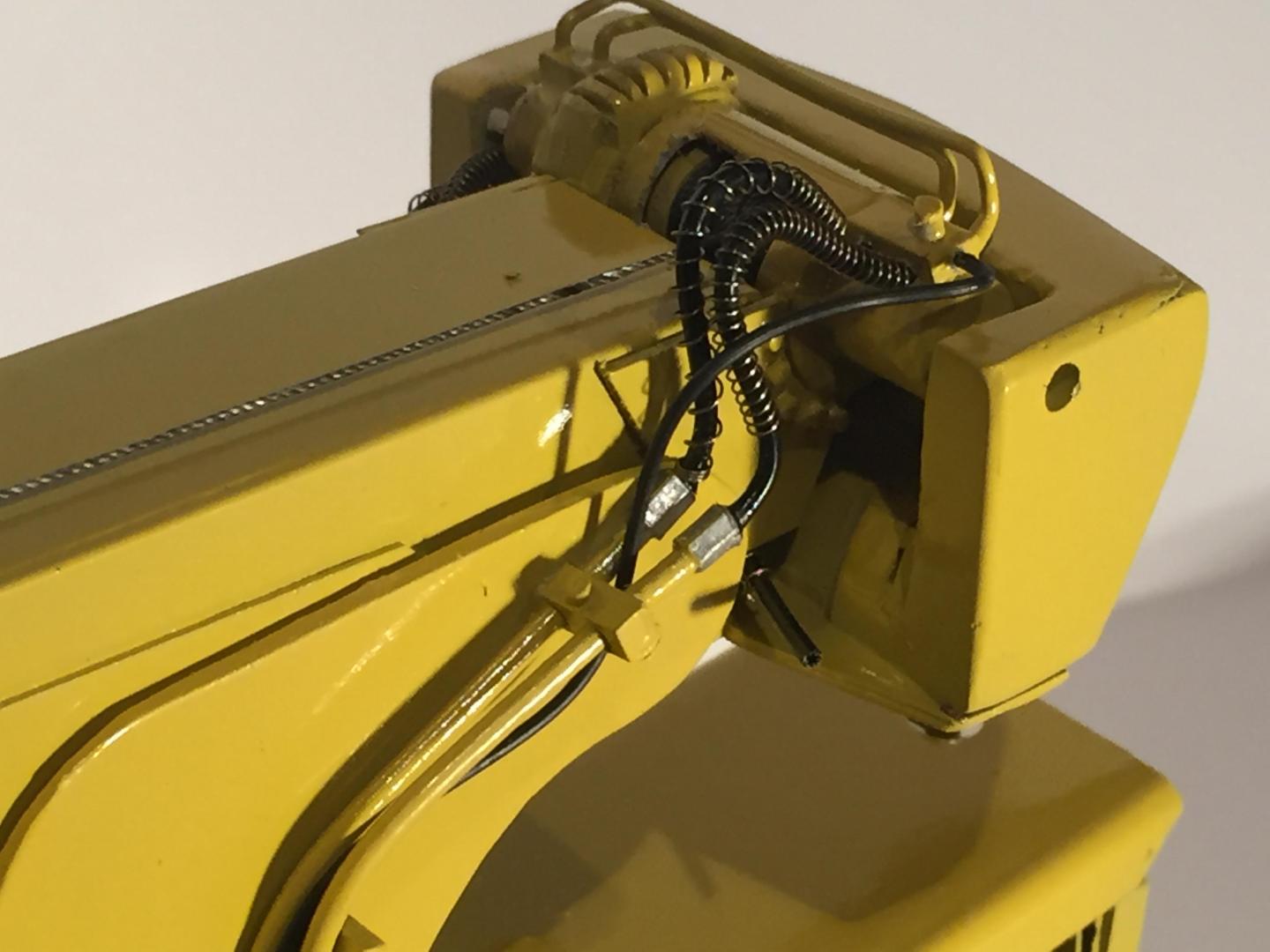

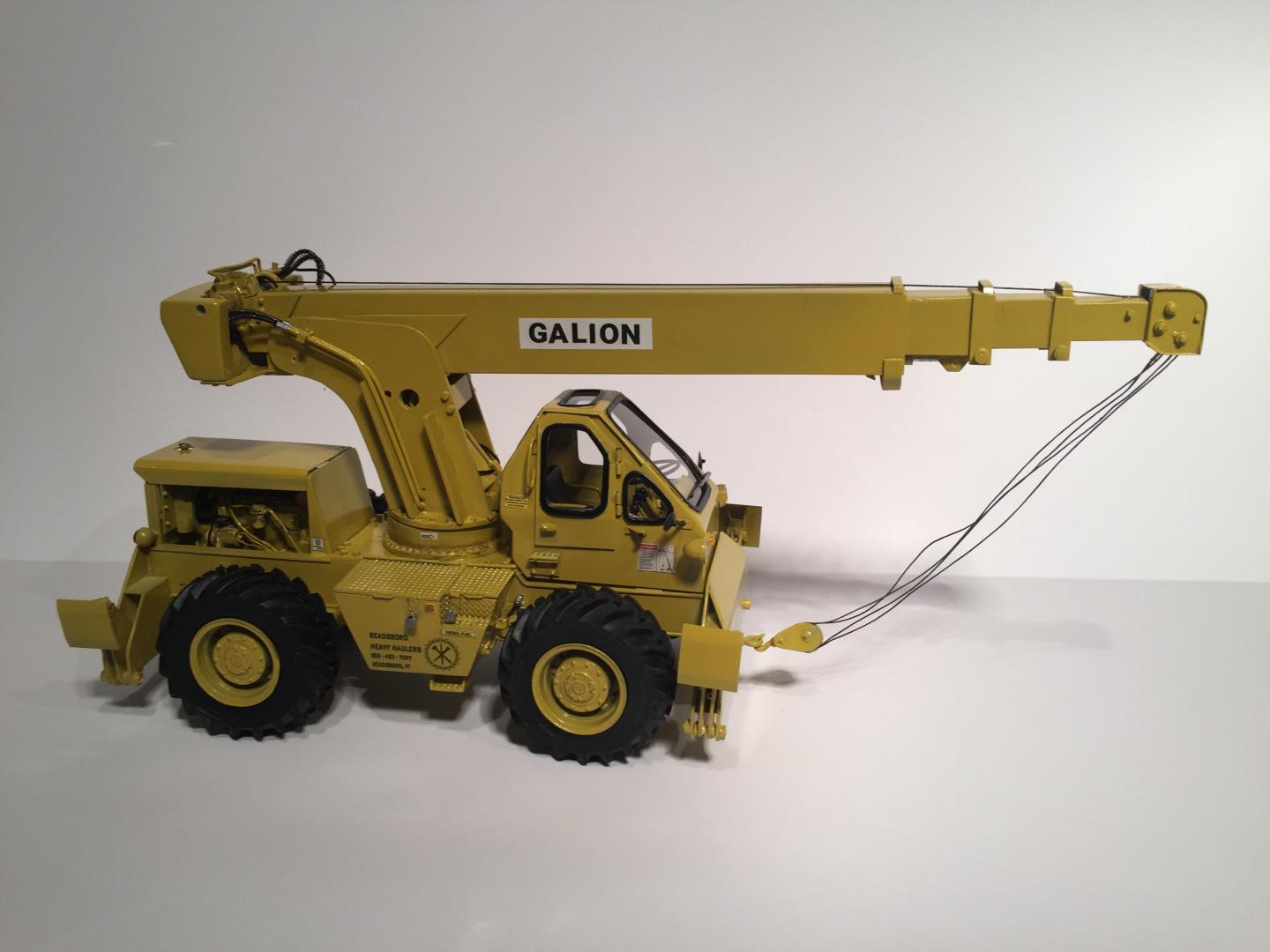

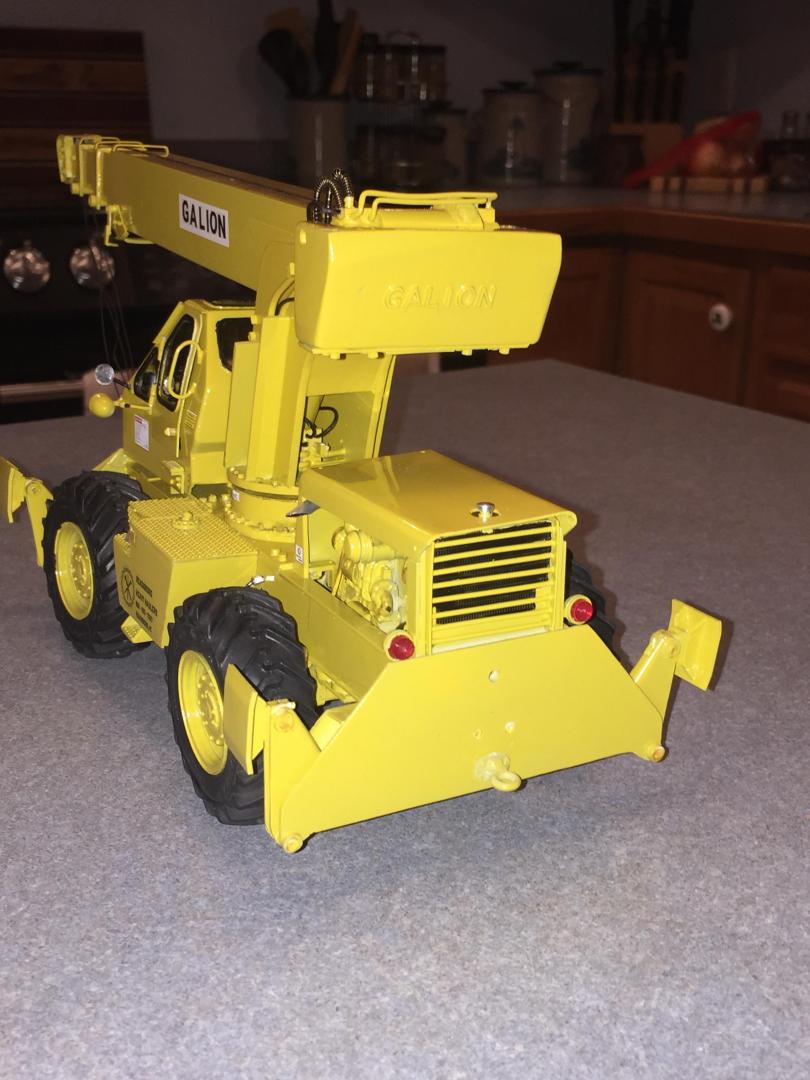

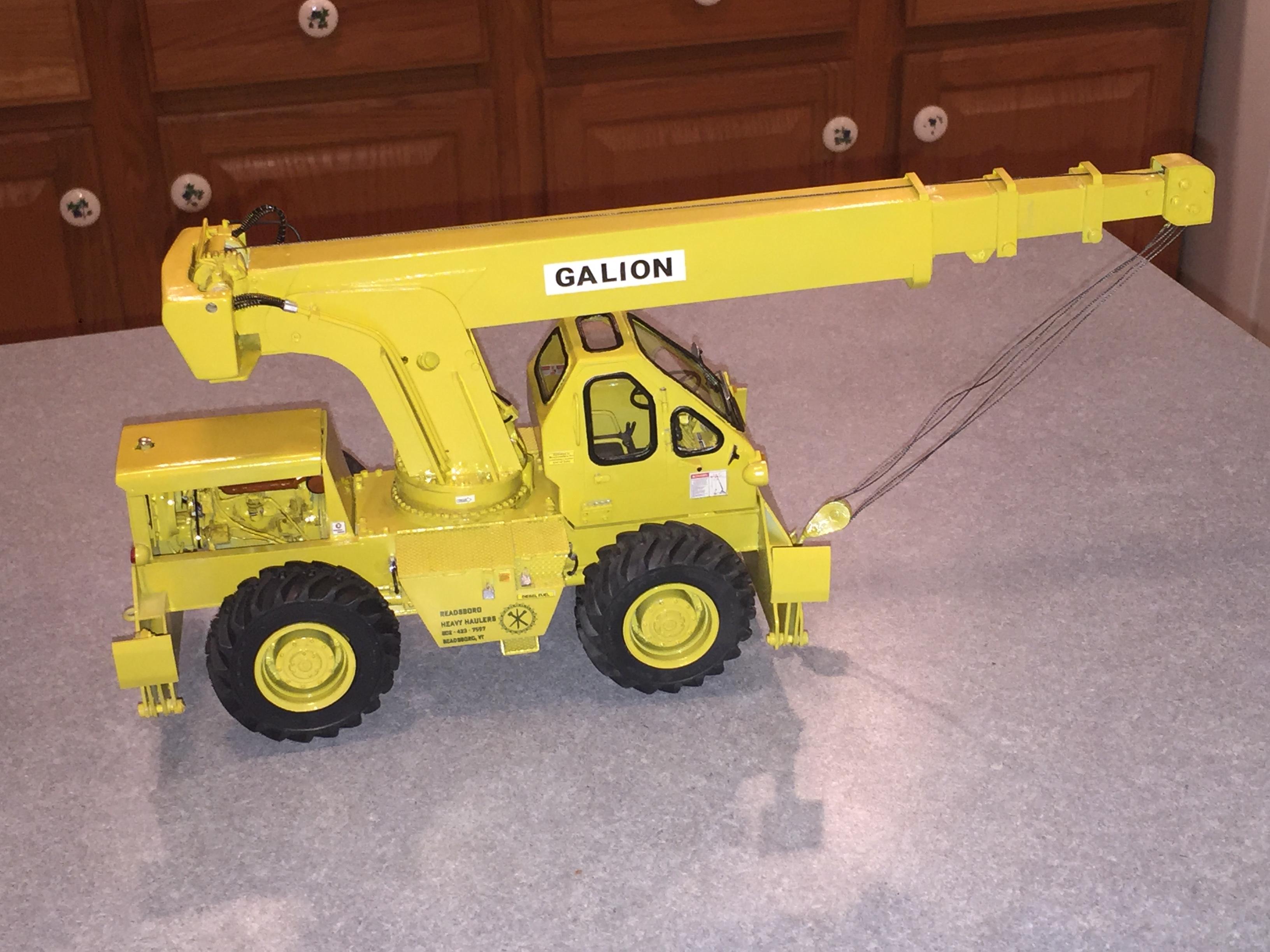

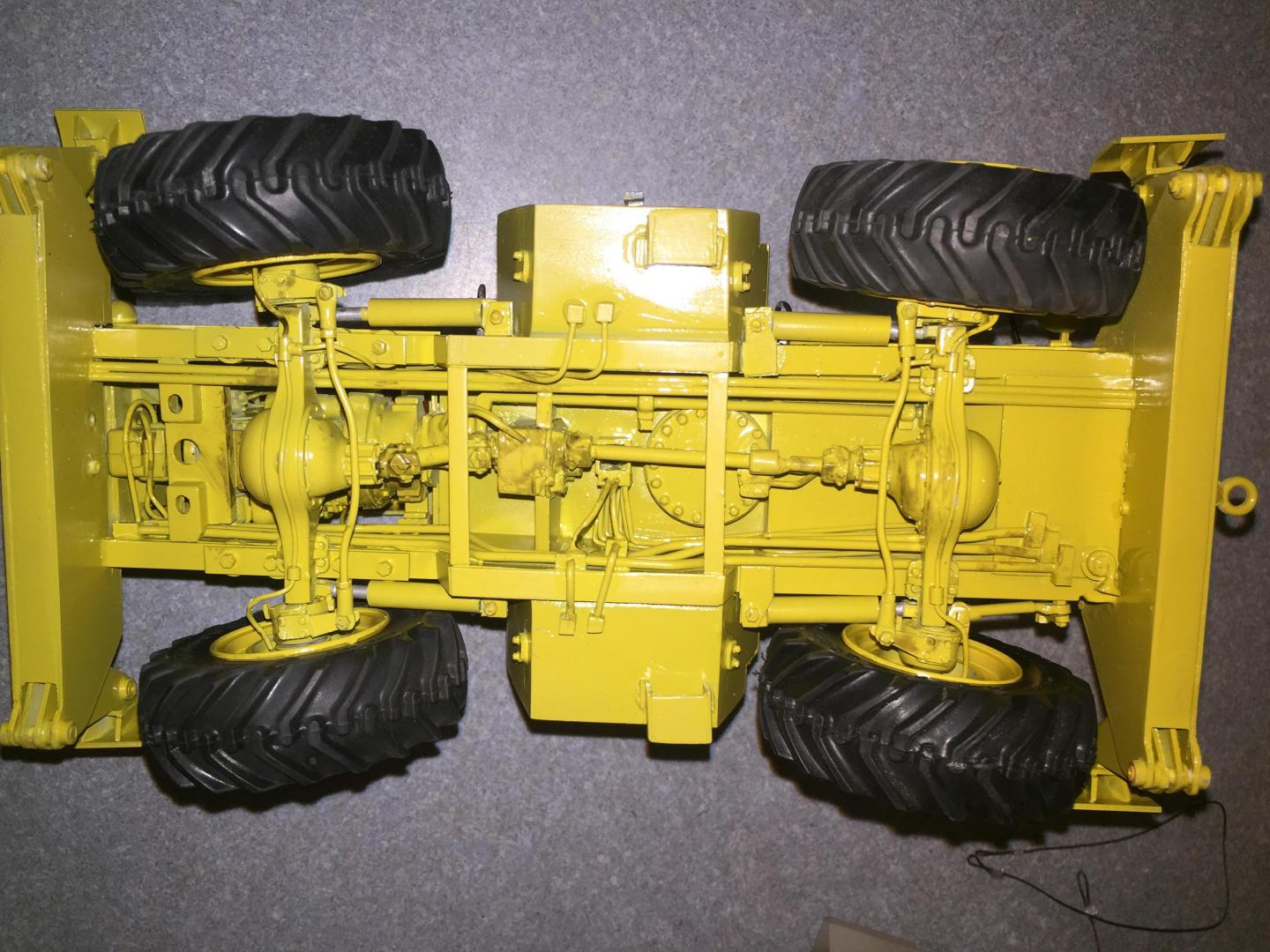

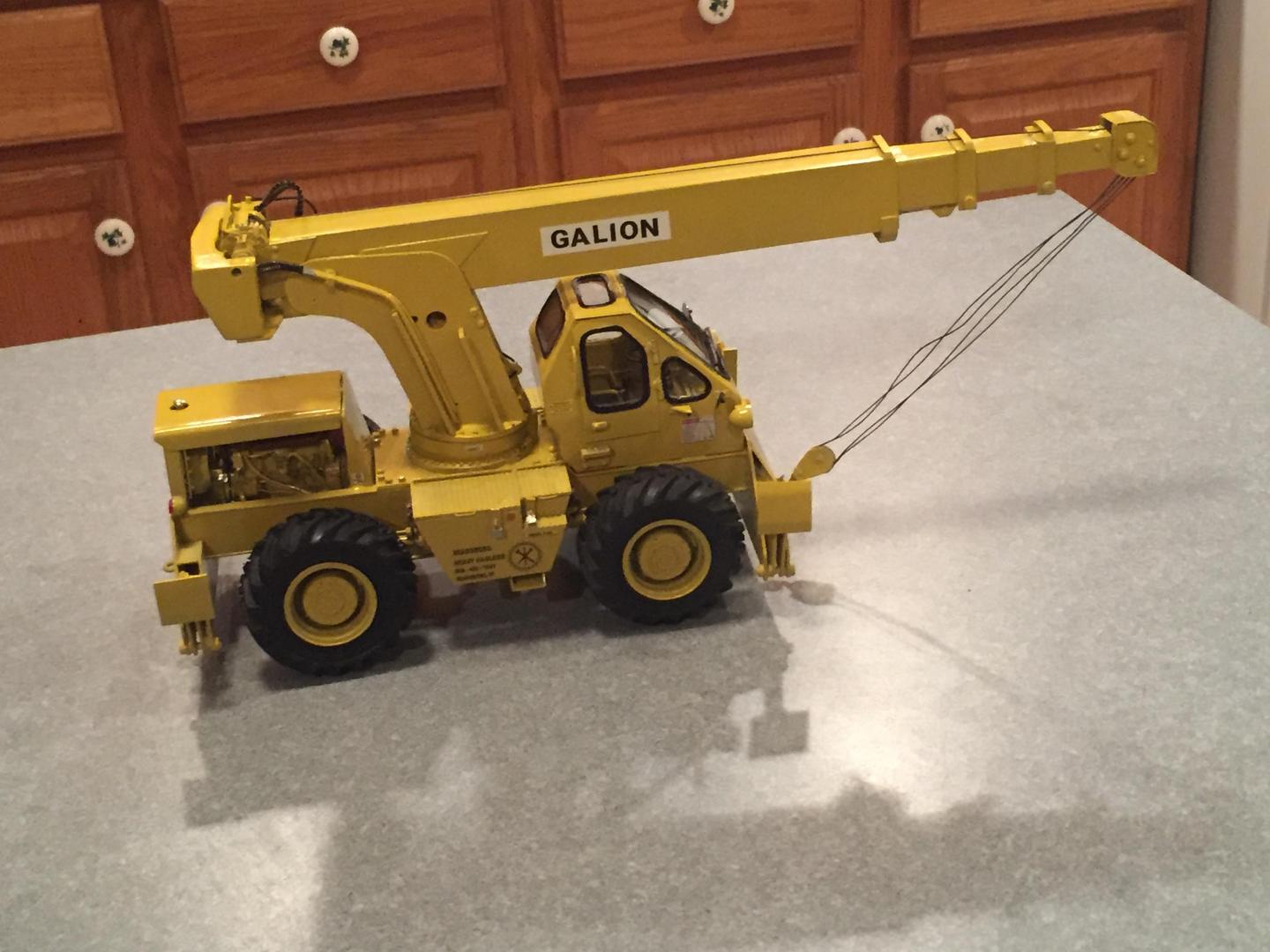

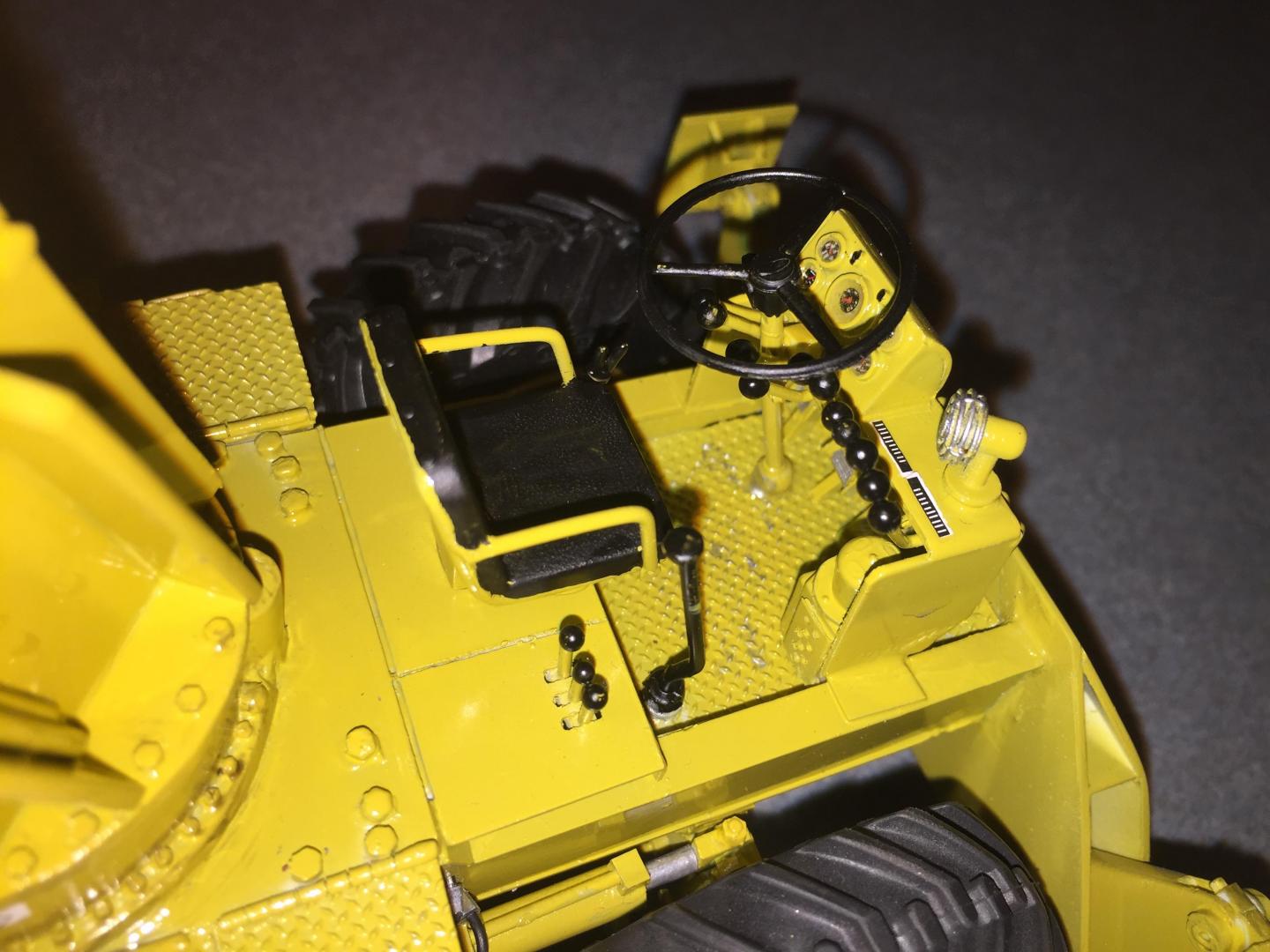

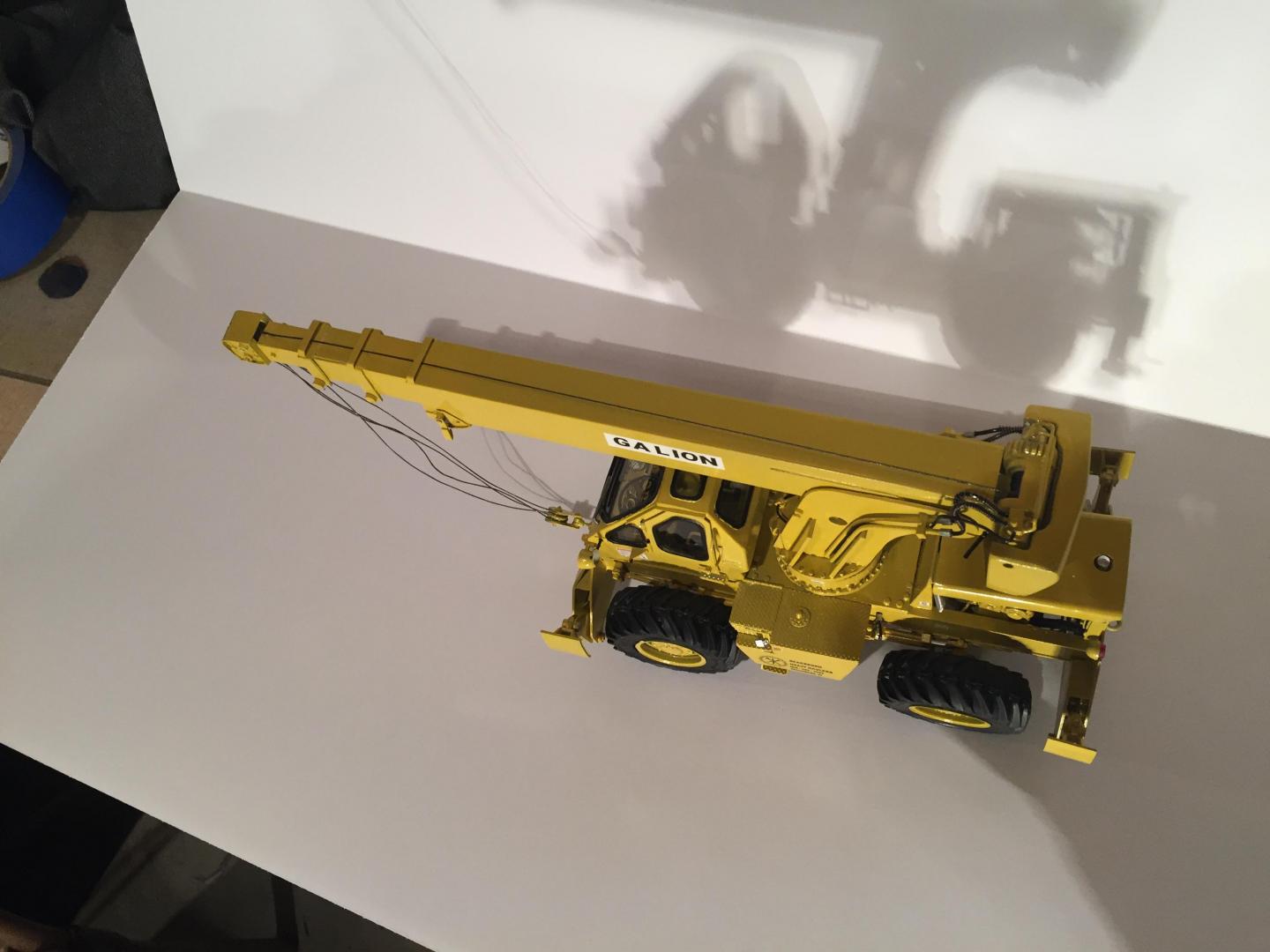

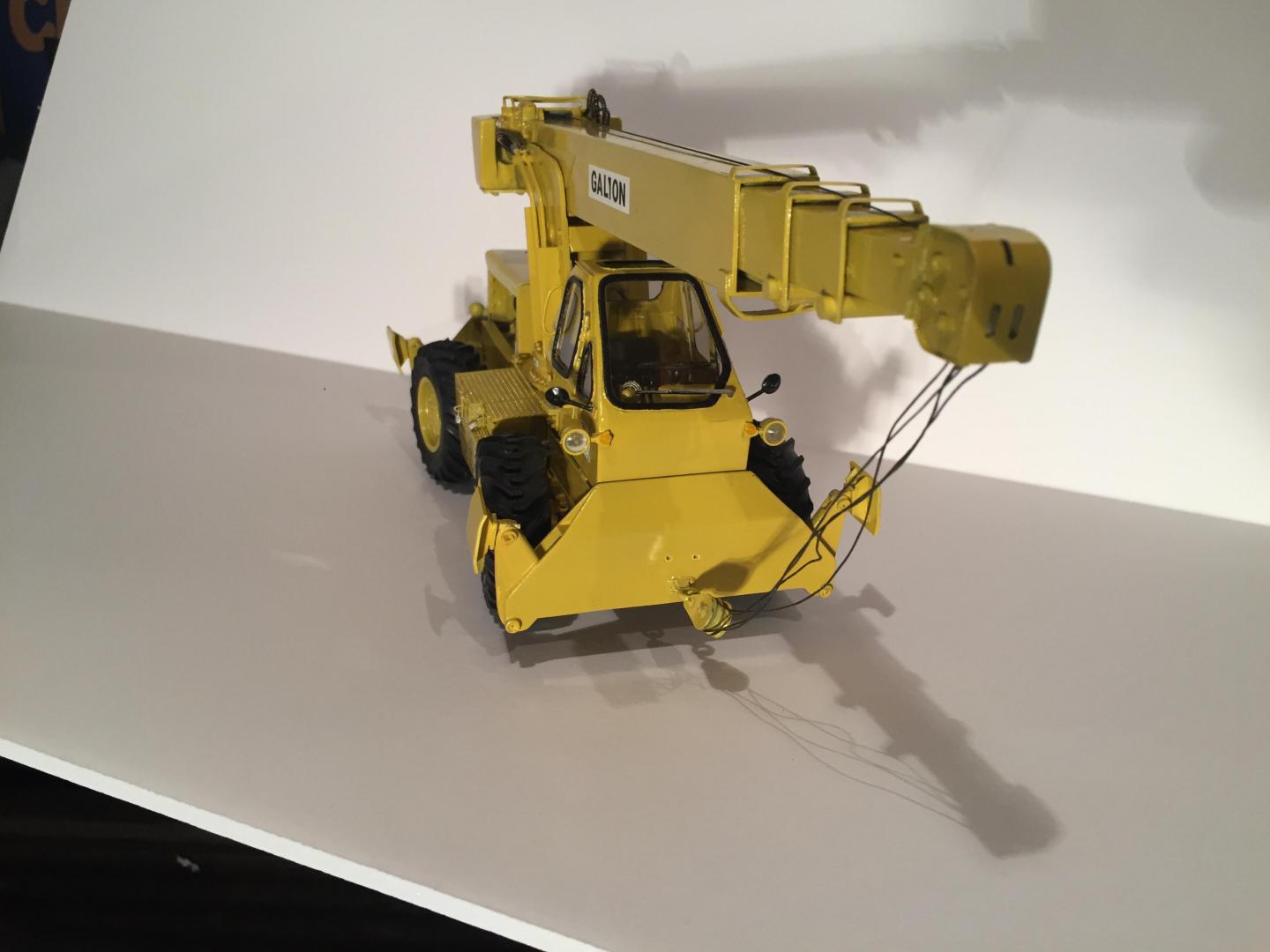

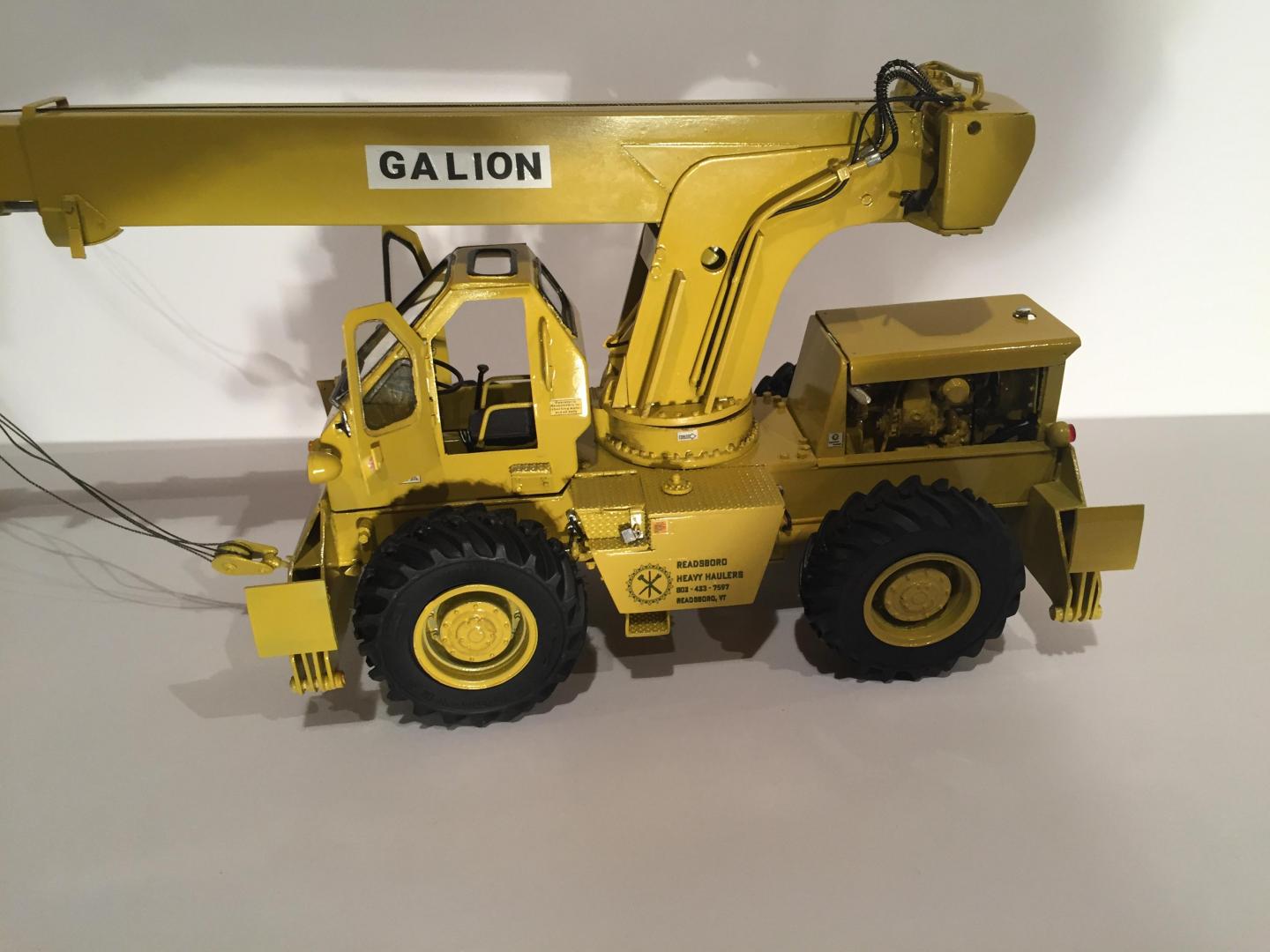

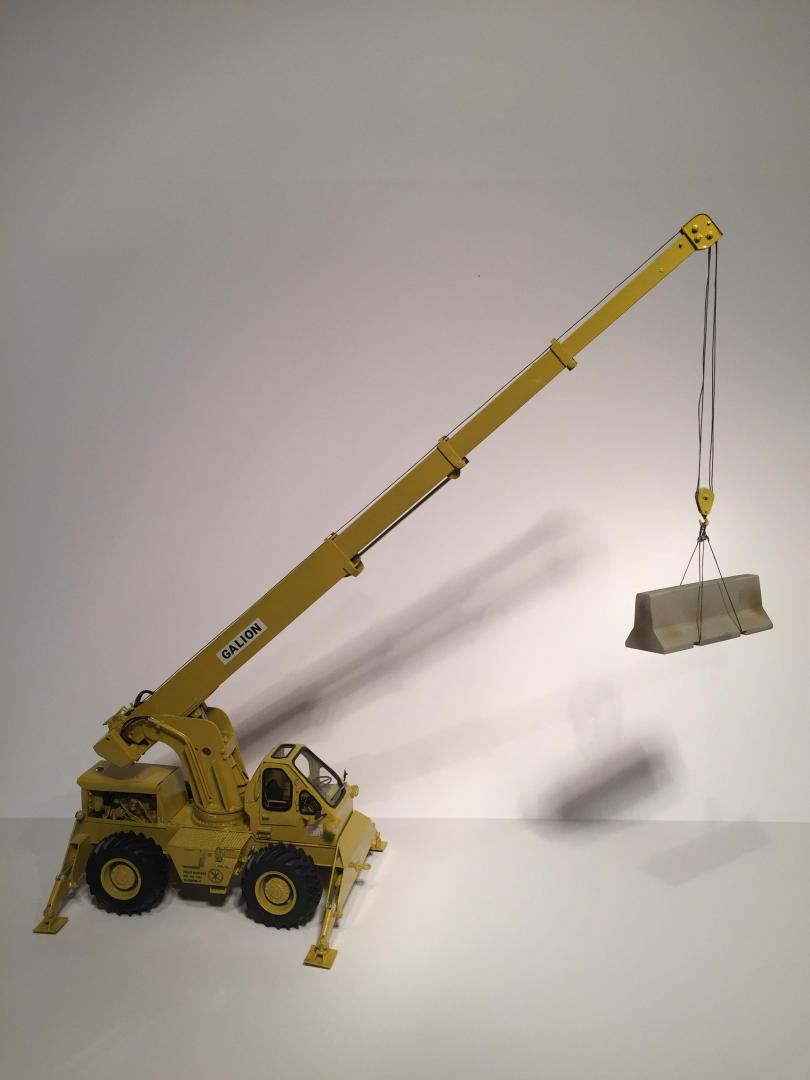

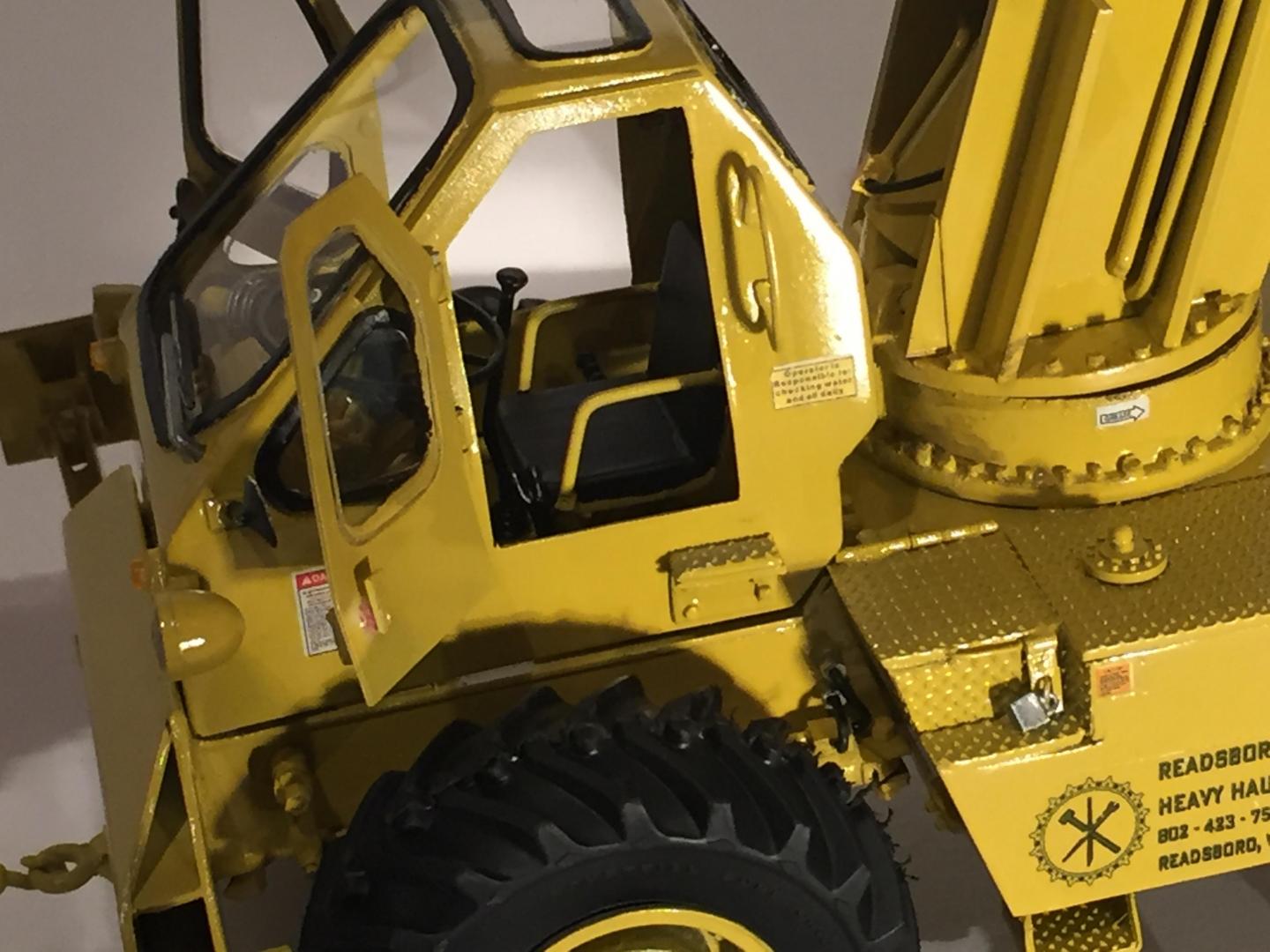

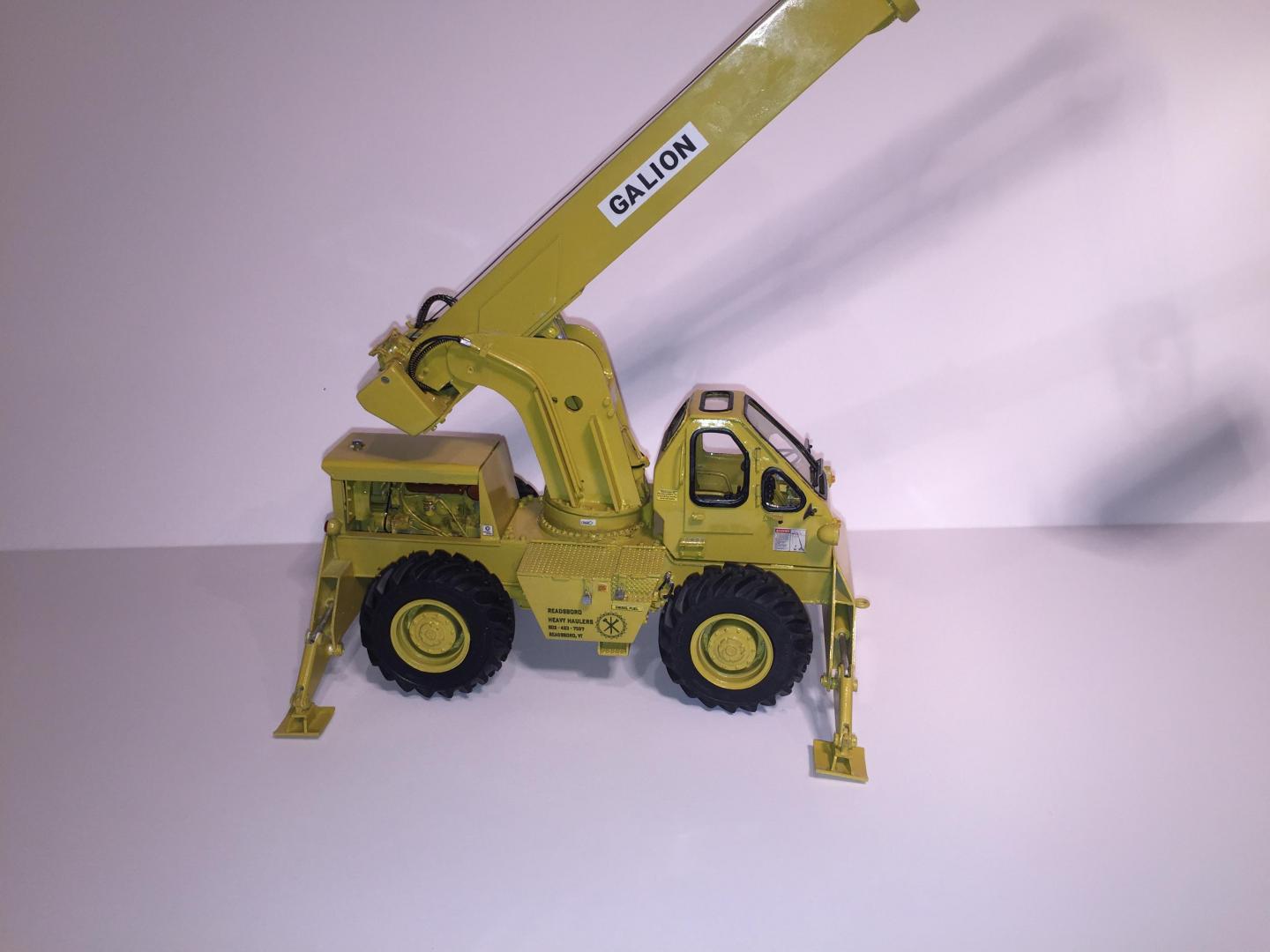

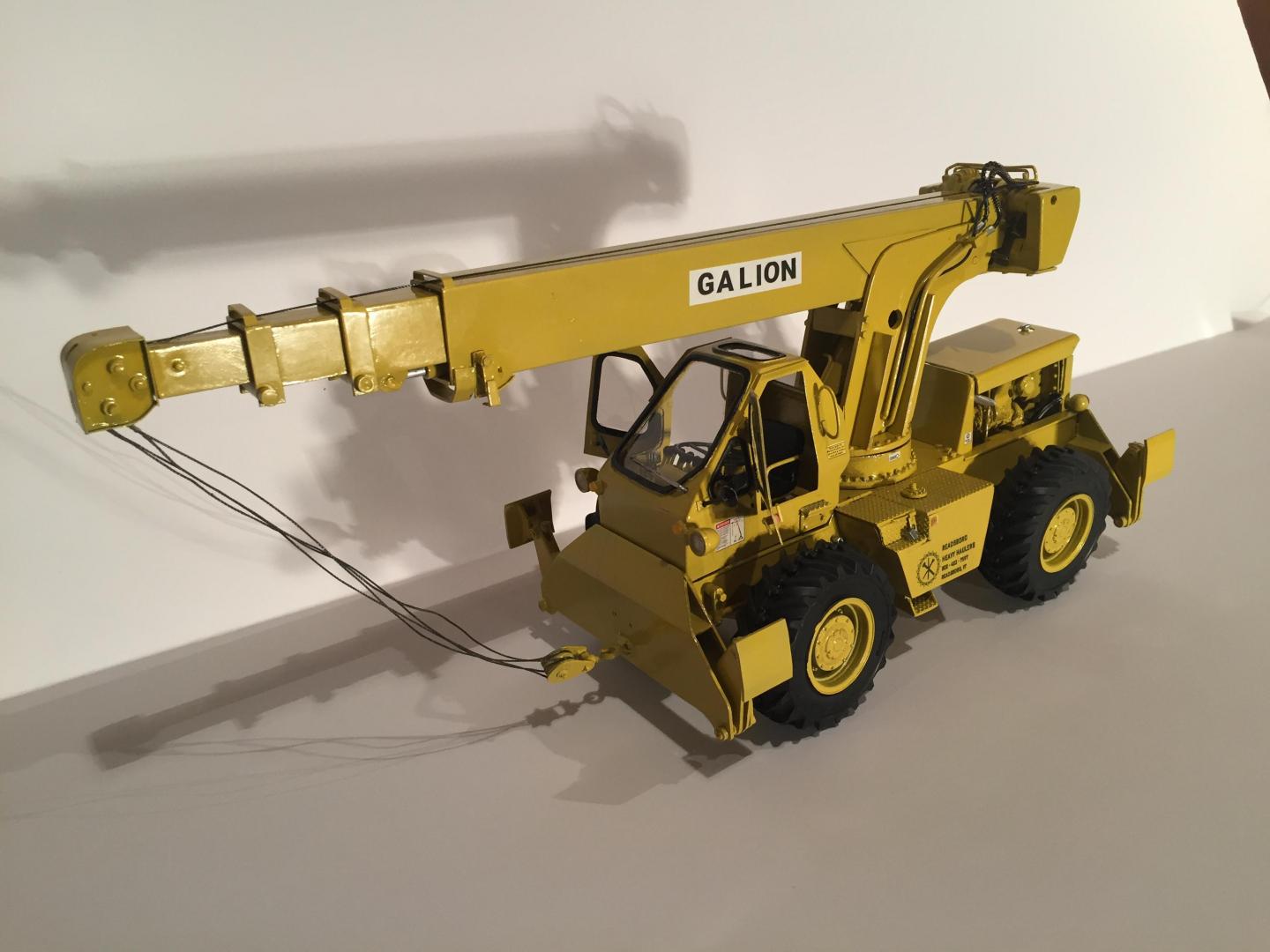

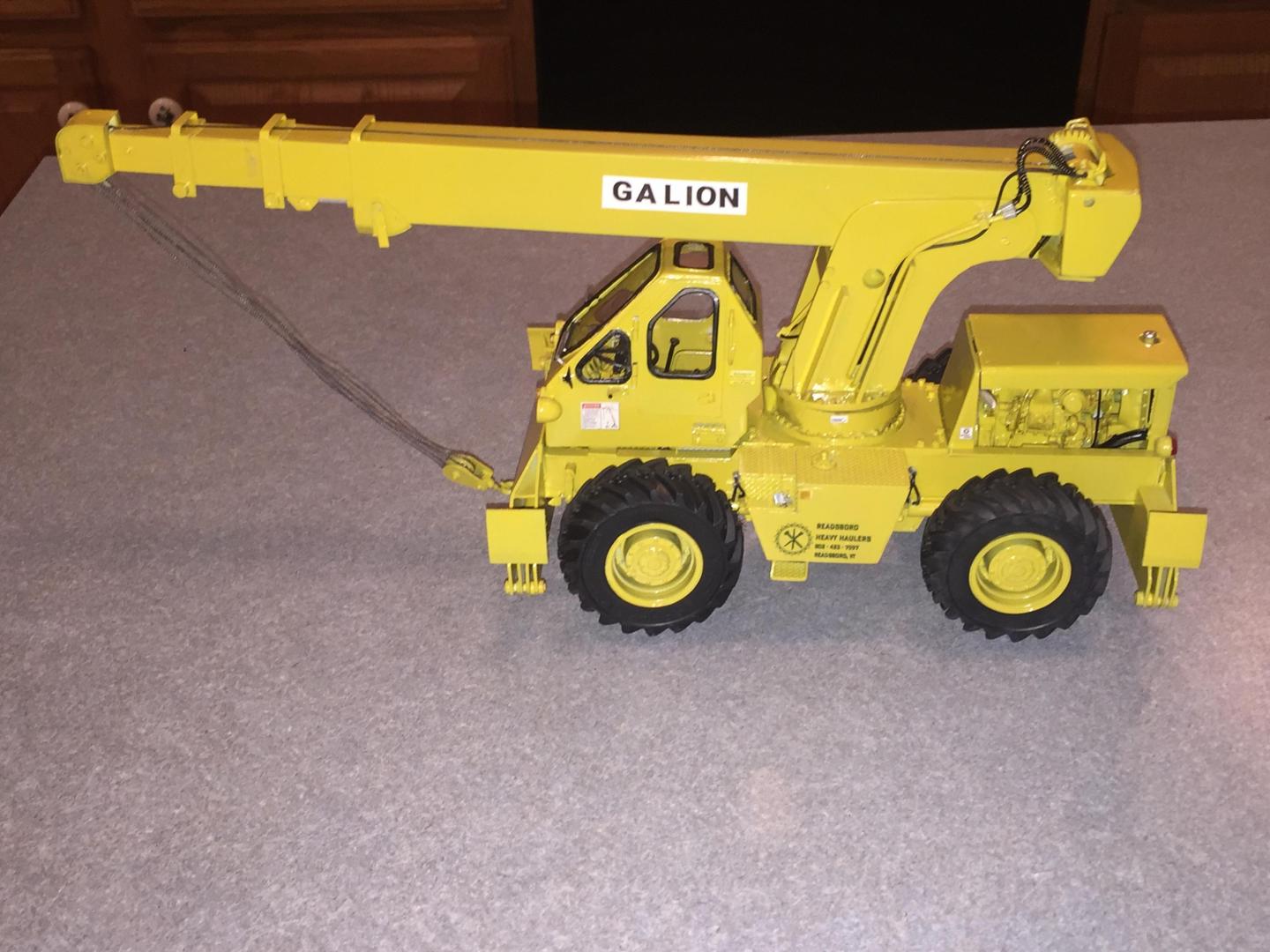

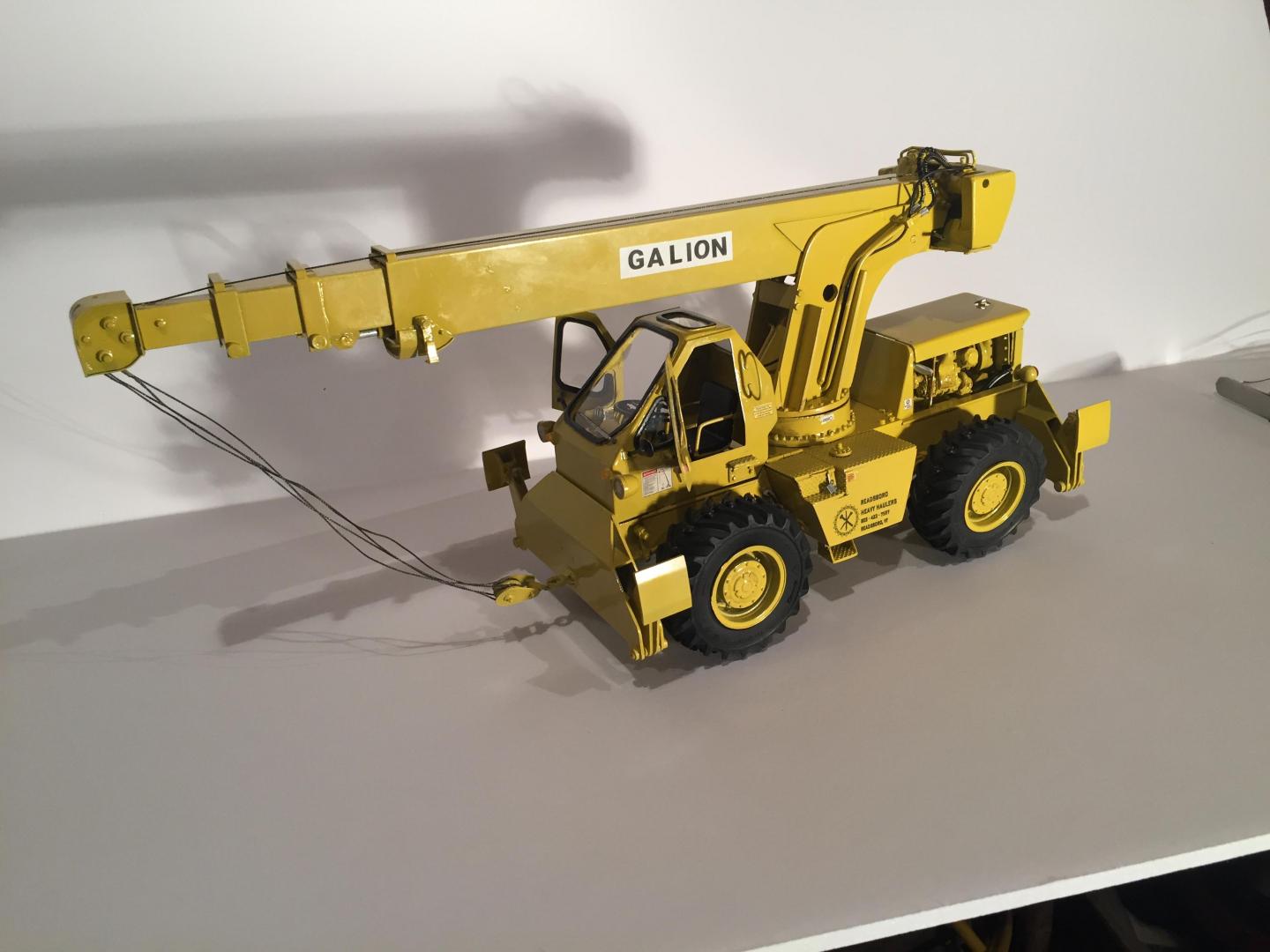

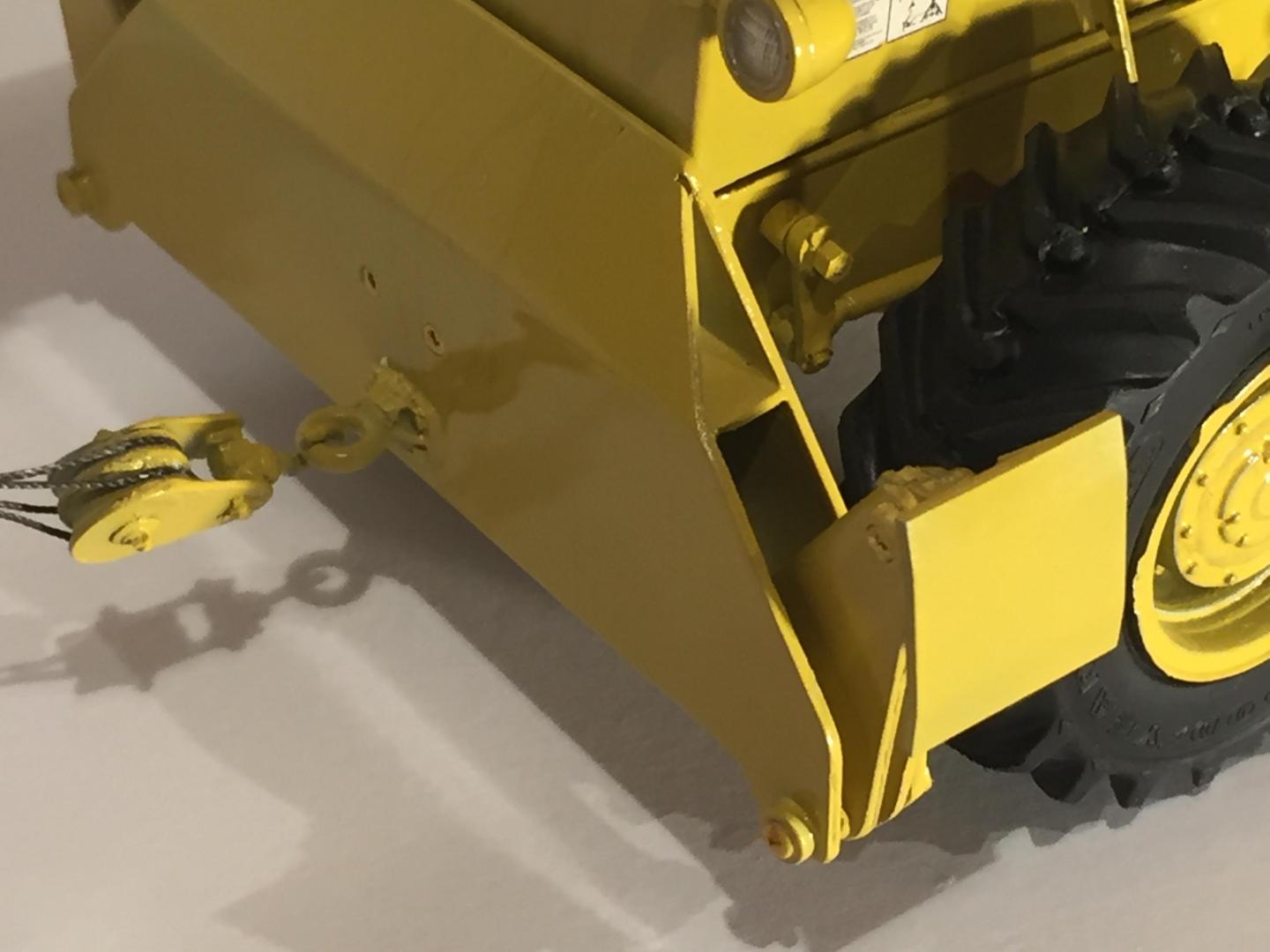

Here is my Galion 12 1/2 ton rough terrain crane.  Took just about five months to do, which for me is a world record. Everything works as the real one, outriggers, doors, steering both regular and crab, boom up and crowd and swing.  Had one casualty right at the very end when the winch spool simply decided to seize up so that will be a trip to the repair shop in the near future. This has been by far, the most challenging mind wracking build I have ever attempted, and I want to thank all who helped me overcome obstacles along the way! I hope you all enjoyed the build. Please forgive the photography skills, or lack thereof. One thing I am not is a photographer/lighting pro!
