Ian McLaren

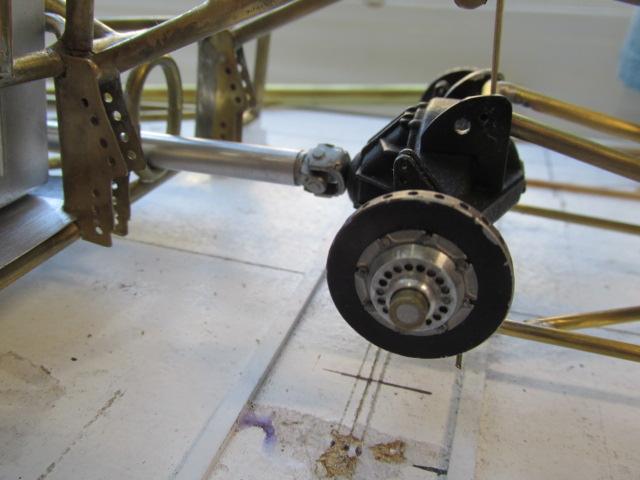

I've been under the weather for a few days, and also spending time setting up and starting to learn how to use my new 3D resin printer. But I did get some modeling done as well. Parachutes have been cast and painted and look to be good enough to use. Built front caliper mounts and installed them on the front struts, luckily everything fits and clearances are good.

The new fabrication looks great, the logo is a nice touch and the inner window surrounds/supports are spot on.

I'm not sure your introduction date on the TH400 is correct. It was first used iin 65 in Buick and Olds and the other divisions in 66. My 67 Caprice 427 car had one from the showroom floor ( In Canada as least). The TH400 found its way into race cars very quickly because of its three speeds and apparent strength. That being said the B&M is also quite likley.

I've been out of town for a while, not much modeling done, I have been going back and improving some already "completed" sub assembliesand starting to add items to the body, quarter window supports and such also routing and installing guides for the chute cables and fire system lines, cleaned up, and replace the sutoff knobs on the Nitrous tanks. Also the wheel nuts and studs arrived but I anm still waiting on the bead lock bolts to arrive from RB Motion

Congratulations on a well deserved win Daniel, and I think Francis is correct about future awards

Francis, again you have out done yourself, the doors are jaw dropping. Fantastic work my friend!

Francis I agree whole heartedly, enen though I have been involved with many cars and engines since the gold Moroso era, they do not replace the fact that these covers epitomize what my mind goes to first when race engines are the topic of discussion.

Small update, I have decieded go a bit old style with Moroso gold anodized stamped alumimun valve covers and breathers, i have also come up with an upgrade for the kit starter motor and the parachute rough master is ready to cast

Thank you Francis, it looks fairly good once it's sitting in the trunk area, but I may build a second one to eliminate a couple of short comings. The bracket at least can be cut down and mounted to the chassis permanently as I'm trying to get the chassis ready to paint but there is a long way to go there as well.

The hinges look very good, and the doors appear to be operating correctly. I would call that a win.

I've been busy but not really much that would be of interest but the to do list is shrinking. The dash and instrument panel have been the major focus but too soon in the process for photos. Also the chassis is getting bars added( body support structure) brackets and cable/line guides installed. One piece of minor interest might be the master cutoff switch and bracket that are in progress. The actuating rod and knob that go through the rear panel are in progress but will be later as they have to be sized once the switch is permanently mounted.

Love it! Also the panel with the Orange is a real stand out.

Your a self taught machinist? Your turning out beyond aerospace level machining on a regular basis. I am astonished, and I'm only saying that because I'm to old to say "my mind is blown!"

Thank you Francis for the kind words, and yes it's a long list but I'm still having fun with it.

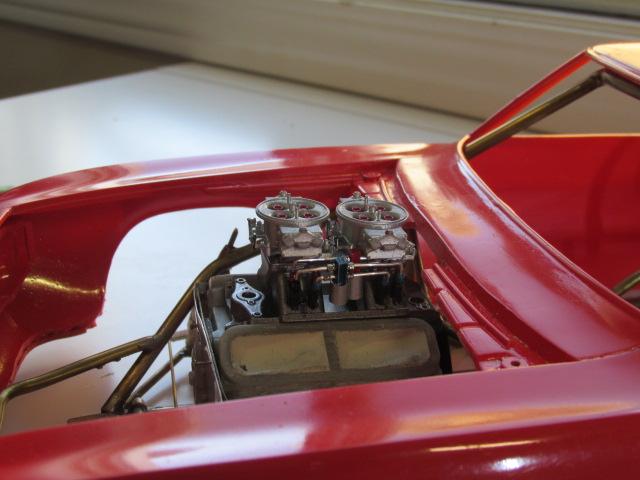

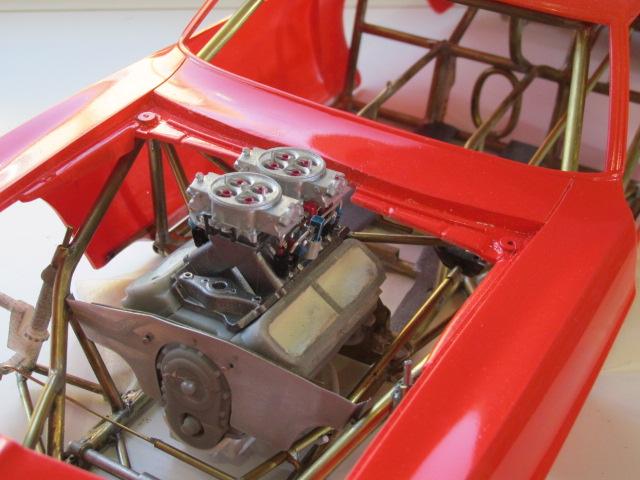

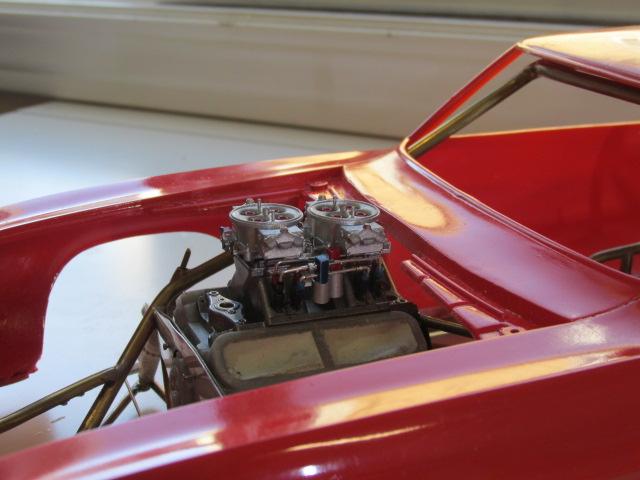

Better look at the intake in progress, by way of the new photocell powered turn table that came with the curing lamp for my 3D printer MVI_0159[1].MOV

Daniel l like this effect, I did the same on the tin on the Banzai Vega panel. I used the kitchen plastic wrap with transparent blue under transparent red on a silver base. I think I like your plastic wrap style better but it may come down to a matter of scale depending on the size of the panels your doing, the sponge effect may work better on smaller panels.

Busy today, I was mistakenly thinking I was approaching the point that I could start considering assembling this beast in the near future so I decided to take stock of where I'm actually at. Not even close, here is the partial list of required things left and this does not include actual assembly or refinishing. I did make some progress as the last thing I added to the list is now ready to put on the car. The line lock and its bracket can be crossed off the list and I have checked the fit with the also scratch built master cylinder 69 Camaro Punch List BODY Gap between lower valance and bumper Finish upper cowl panel Refine rear spoiler Hole in rear for parachute attachment point Mount rear bumper Remove mold line in roof Windshield and rear window Windshield support braces Quarter windows and frames Secure deck lid Remove right fender Camaro emblem Lower edges of front valance extensions Upper front valance left low spots (2) Cut out right door Adjust body mount holes right side Fab parachutes, mounts, cables and install on the body Hole for master cut off control rod DOORS Redo hinges Fab inner door panels Fab inner door release handles Fab window supports Fab side windows Add magnets to doors INTERIOR Detail and install floor pans Finish dash display, fill gaps around cage Steering wheel, switches and cables Seat belt mounts Finish seat and mounts Seat belts Master switch panel fab wire and mount Parachute release handle Power grid shelf and wiring Electonics boxed and wiring Install firewall panels and front fender stuffers Install rear block off panels Install pedal assemblies Install delay box and wiring NOS assemblies and hoses Mount shifter to center consol and shift cable CHASSIS Fab and install rear parachute mounting bracket Install guides for all cables and lines Install battery grounding lug Install Master cut off switch support bracket Fab and install wheel tubs Fab and install trunk close off panels Fab and install additional rear body supports Fab and install front driveshaft loop Seat belt mounts Firewall panels Front body support structure ENGINE Fab and secure front engine mounting plate Electric water pump Pulley for dry sump pump Distributor and wire set Starter and wiring Dry sump oil pump and hoses Dry Sump Tank Steering shaft and U-joints Fuel Logs and hoses Throttle linkage Rad hoses Coil mount on firewall UNDER HOOD Mount fuel pump hoses and tank Fuel pressure sensor and wire Steering rack inner and outer tie rod ends Master cylinder and Lines Front coil springs Caliper mounts Brake lines to calipers Fab line lock and mounting bracket

Thanks Daniel, I'm happy with the headers so far, the Nitrous fogger stage was a major challenge still a bit of tweaking to do but it's there. Have to run the fuel and Nitrous feed lines, still debating putting on the Viper second stage in plenum nitrous system. Then there is the carburetor fuel lines and throttle linkage to deal with. A blown alcohol motor would gave been sooo much easier.

Beautiful!

And here we are, good progress yesterday afternoon and the this morning. It's been a good day.

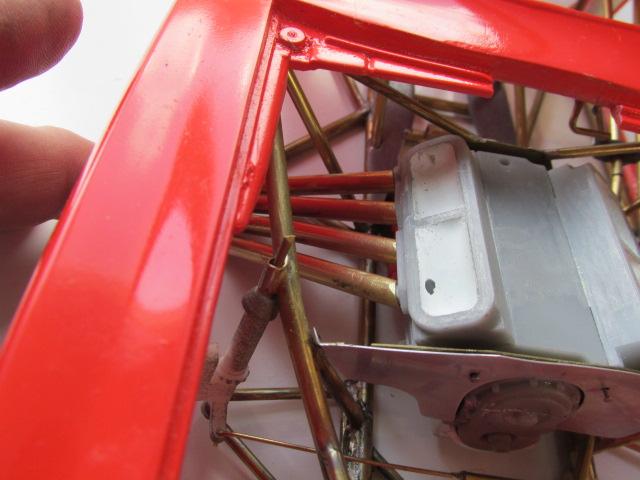

Thanks Francis, with the clearances involved they have gone as far as I can take them. I know they will fit fine but until most of the major bits are mounted permanently I can't set the final angles as the clearances are just too tight to guess at, especially on the drivers side, the steering and the drysump pump are almost certain to cause an issues and the steering clears the headers now by only mm's so any change could cause some head scratching. Back to the top side of the engine.

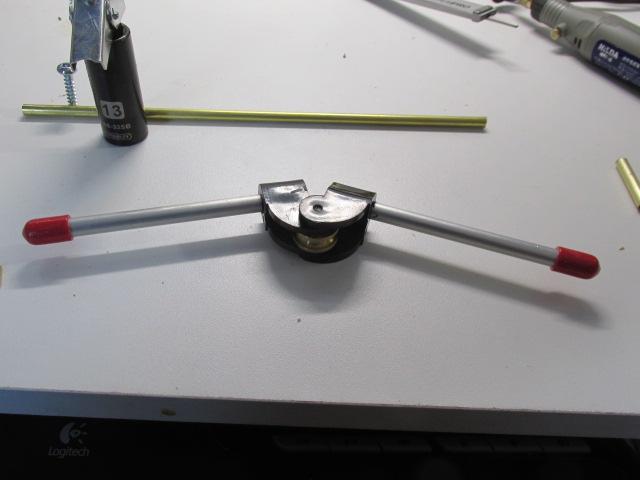

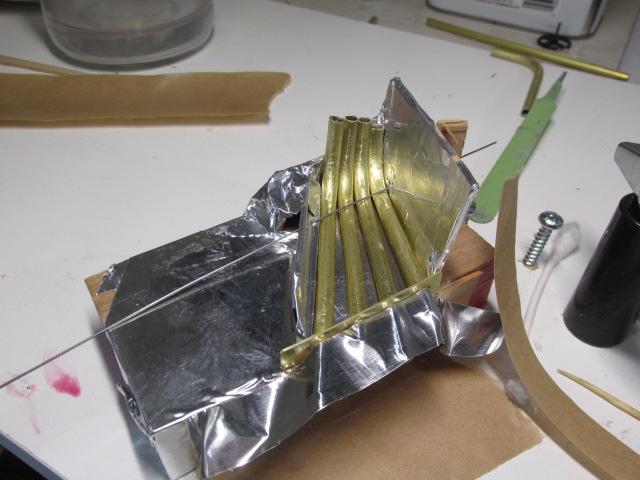

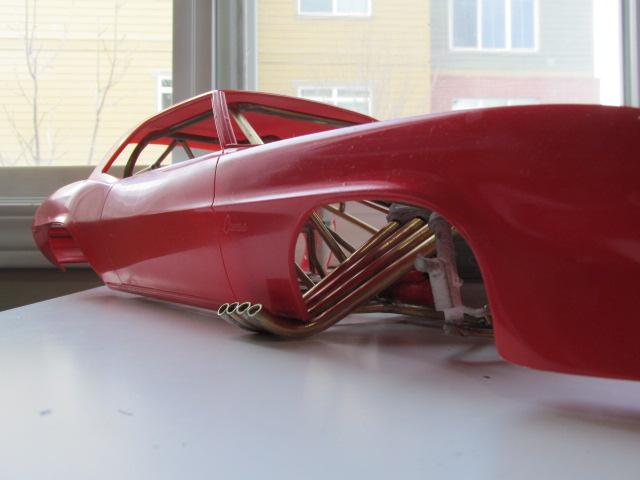

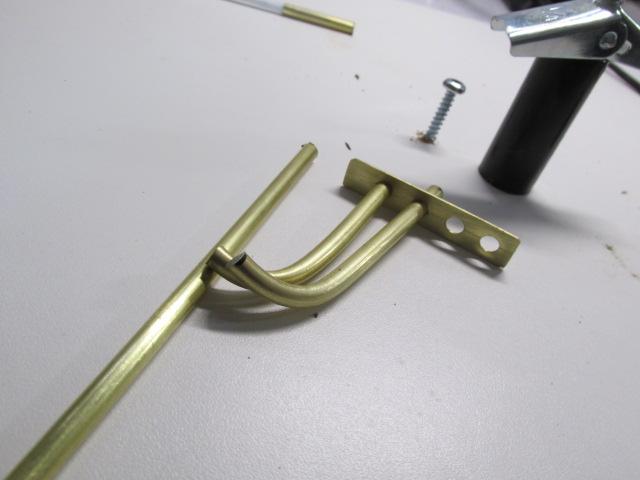

Both headers now fabricated and rough fitted awziting final mounting to the engine in the chassis

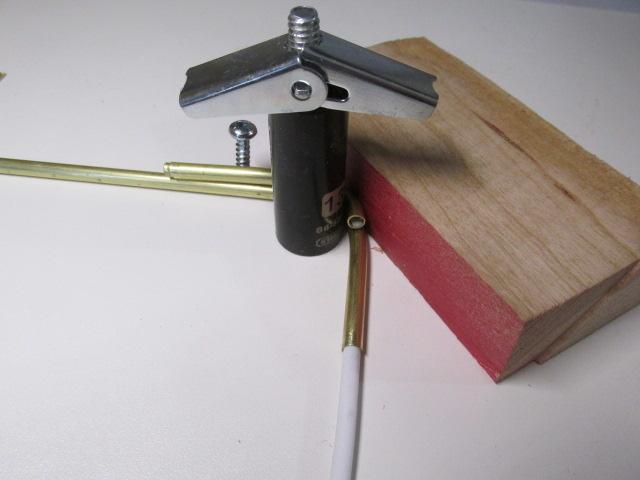

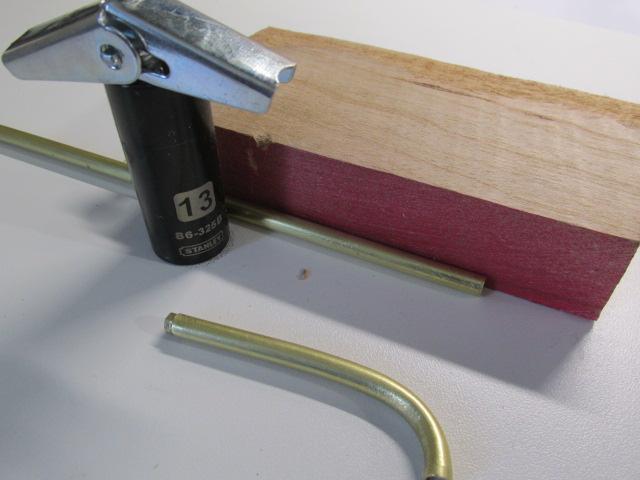

Intake is on hold waiting for linkage parts, mean while the headers are under construction

Great products, high quality, fast shipping and a great guy to deal with. I use his parts in most of my models

Francis, I'm pretty much speechless on the door frames, WOW!
