Today was just a case of adding the engine mounts. My mind was on something else today. I want to do a transmission this time, the kit pieces is not even a starting point it's that bad. I took the Ford LTL9000 engine and transmission to use as a pattern, this is a fantastic little piece! I was looking at the rear casing detail thinking about how to model it and I just thought I'd jump into a new world. I balled up some Blu-tack, sprayed the rear transmission casing with olive oil and pressed it in. Then I mixed some epoxy resin and filled the mould. It turned out pretty good. It looked really rough at first but as I cleaned it up it really started to look good. I coloured it with a blue Sharpie so I could see it properly - I'm amazed! The caps on the countershafts are clear as are the fillets on the output flange. First try at casting and it's a real thing! Trimmed it down and it's great. I've just got to make a transmission housing now.

Thanks No, I never thoughts about that! I might sit and do that tomorrow. Good thought.

Thanks mate, we're ok. Friends out in the sticks had a power outage but we're ok.

Confined to barracks today by this storm that's battered Scotland and Ireland, +100 mph winds they've suffered. We've just had 60mph so not so bad. Took the opportunity to add more to the Caterpillar, PAS pump in front of the compressor, PAS reservoir on the back of the head, starter motor, alternator, front pulley on the crank, fan belts from elastic cotton and a flywheel housing. Still need to do a fan and engine mounts.

A good demonstration of lateral thinking yielding excellent results, as usual!

Very tidy work mate, really impressive.

Utterly brilliant work going on here, looks fantastic, the pipework is fantastic!

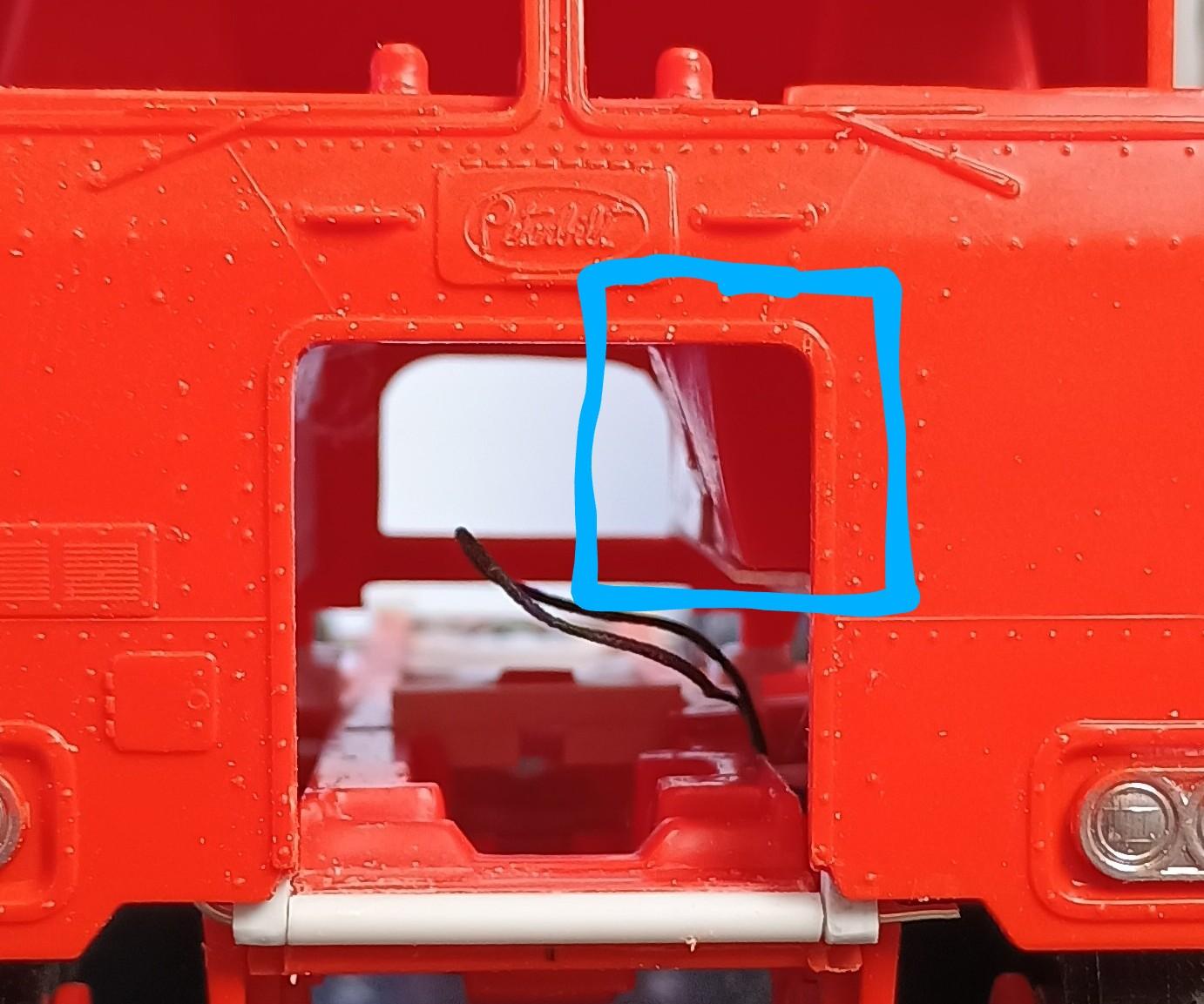

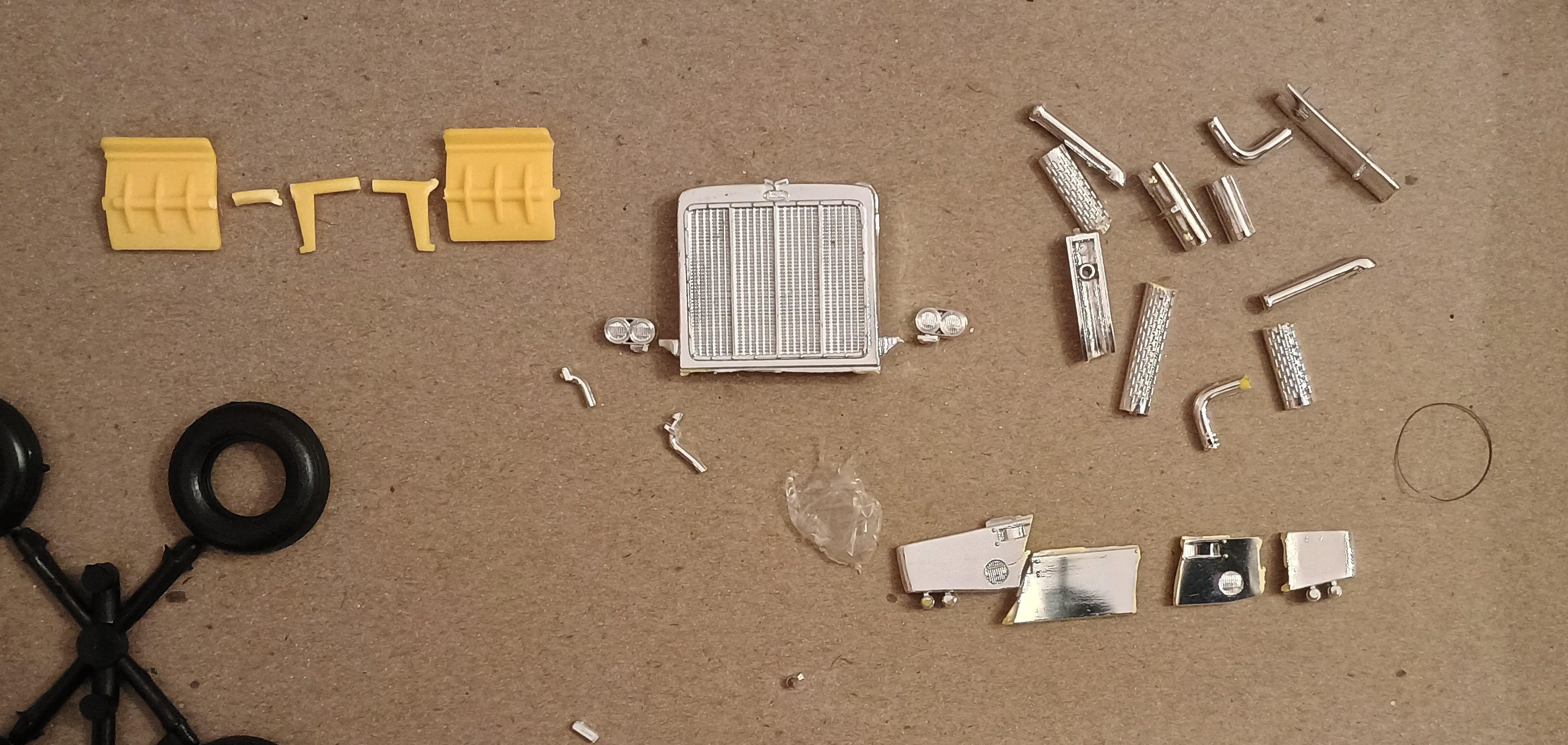

The cab mods are really impressive, you're doing a fantastic job. It's amazing how jobs develop, one mod has a knock on effect on so many other things, you wonder if it will ever end. Then you look at a photo you've been studying for months and see something you've missed thousand times! I do have a new found appreciation for the manufacurers, especially in the old days before computers. How they got the kits to go together at all is a wonder to me!

Turned my attention to the driver's side of the block. Built an injector pump, drive, lift pump and governor housing. Bent up a set of injector pipes from 0.5mm wire, they're a bit rough but they're passable. They're so bent around because injector lines for hydraulic injectors (which all except maybe Cummins and Detroit were), should be all the same length to avoid injection timing differences. The longer the pipe, the more deflection in the wall of the pipe when the pump builds pressure and thus you get a later and shorter lift of the injector needle. Just a boring fact wandering around my brain. For the injector pipes I stripped the insulation off the wire and glued six pieces together, then cut a slot in the top of the pump to hold the row of insulation. Once secured, in could use them as sockets to receive the actual wire and keep it spaced neatly. Also built a compressor from plastic shrapnel lying in the bench. Added a fan pulley to the front cover, that's just turned up from sprue in the chuck of my drill. That's the beauty of doing these things, everything is so small I can just use all my offcuts strewn across the bench as raw material.

I know, it's madness really.

Very interesting project, excellent scratch building!

Good colour choice. The Hendrickson suspension does look the part though that would ride hard!

That under reach is immaculate. Excellent work.

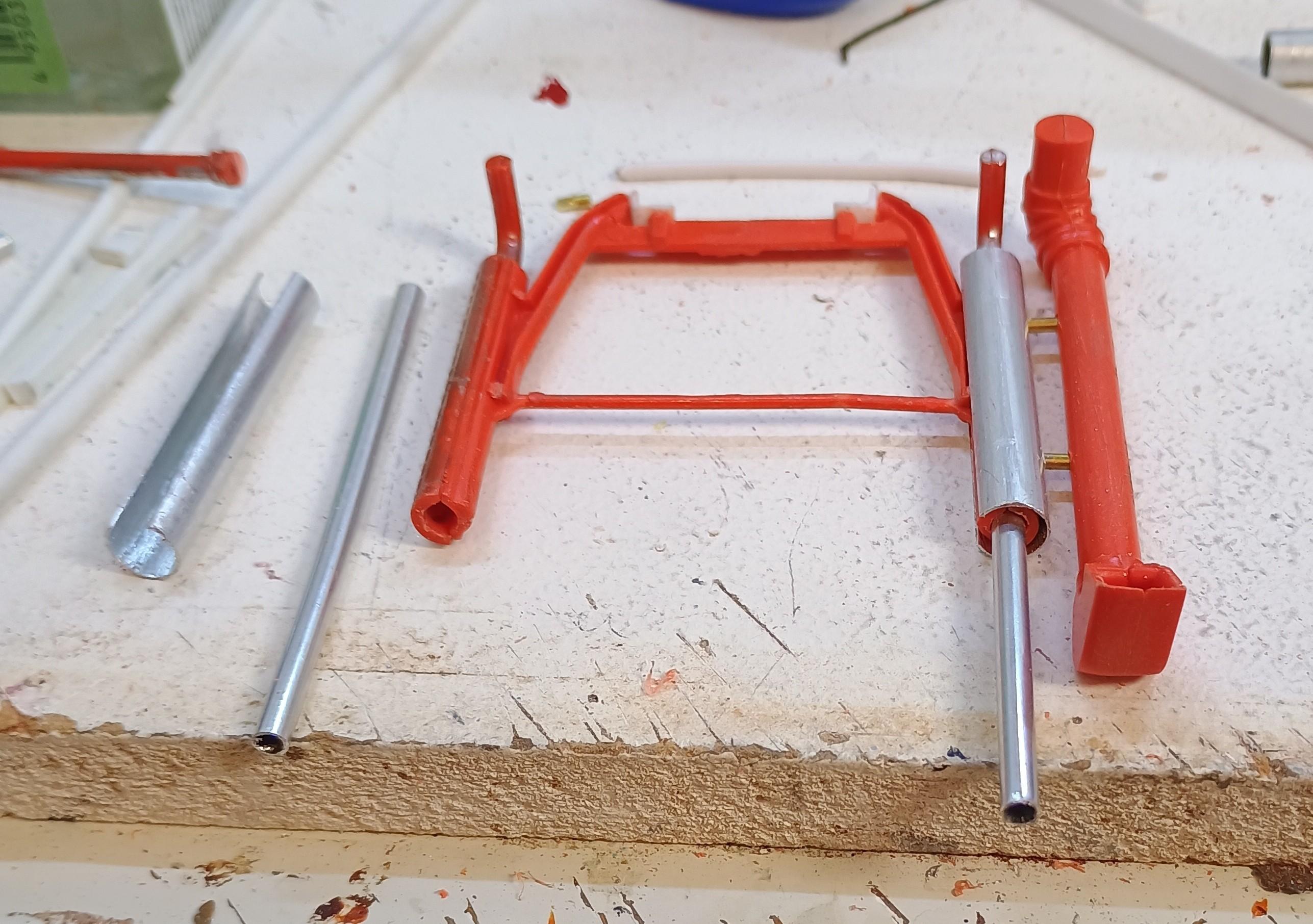

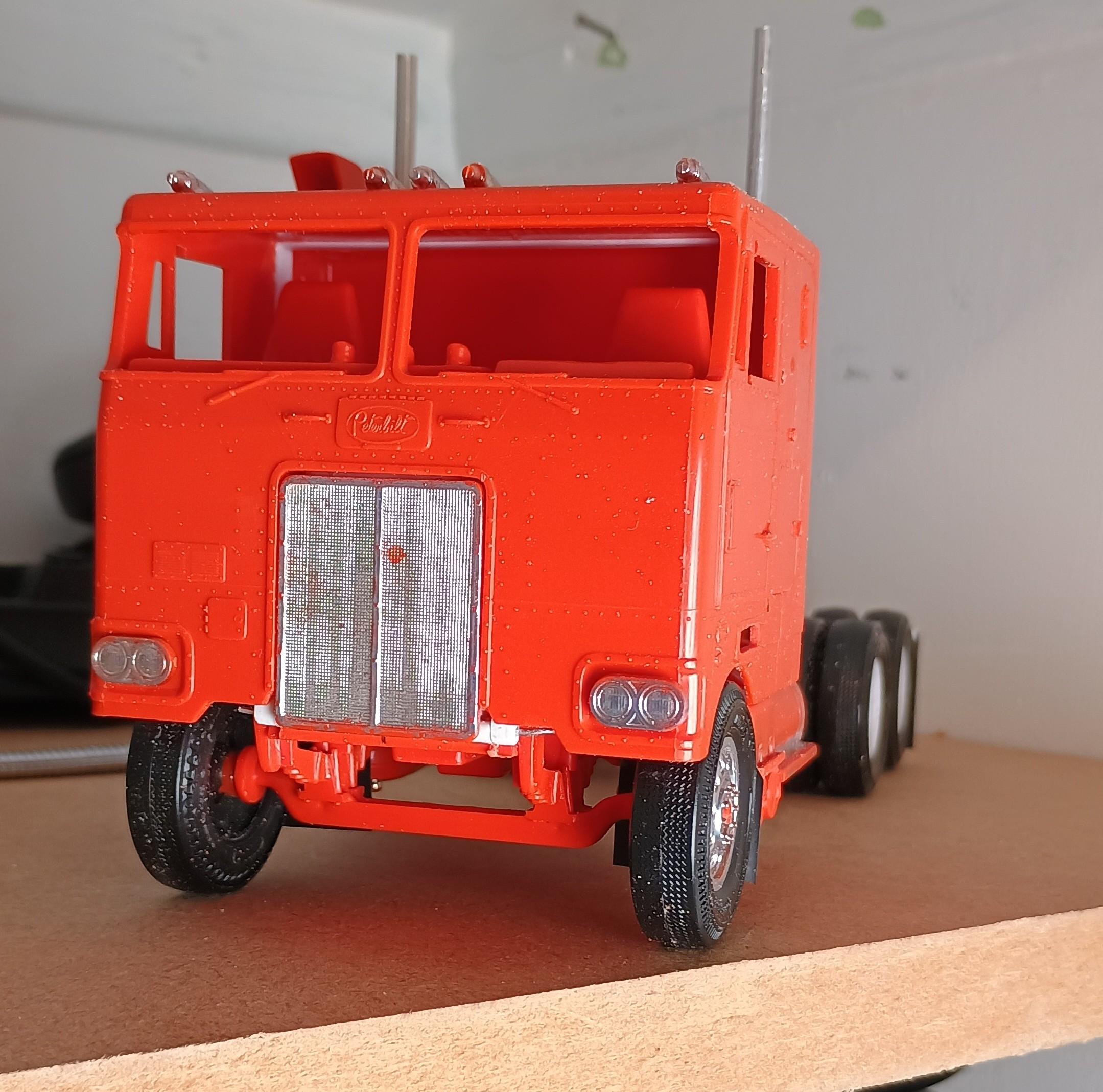

I like the heat shields on the stacks and the wheels look good too. Going to be a very nice build.

Nice work so far mate. Looking forward to seeing this come together.

Thanks for the comments, I really don't feel I deserve them, maybe I'm just cheap! I've not the Diamond Reo. I am amazed with the work I see on here from the likes of The Brush and Jürgen, who approach things from totally different directions but are both achieving the same thing. The creativity and ingenuity within people is fantastic!

Don't know how he does it, puts me to shame!

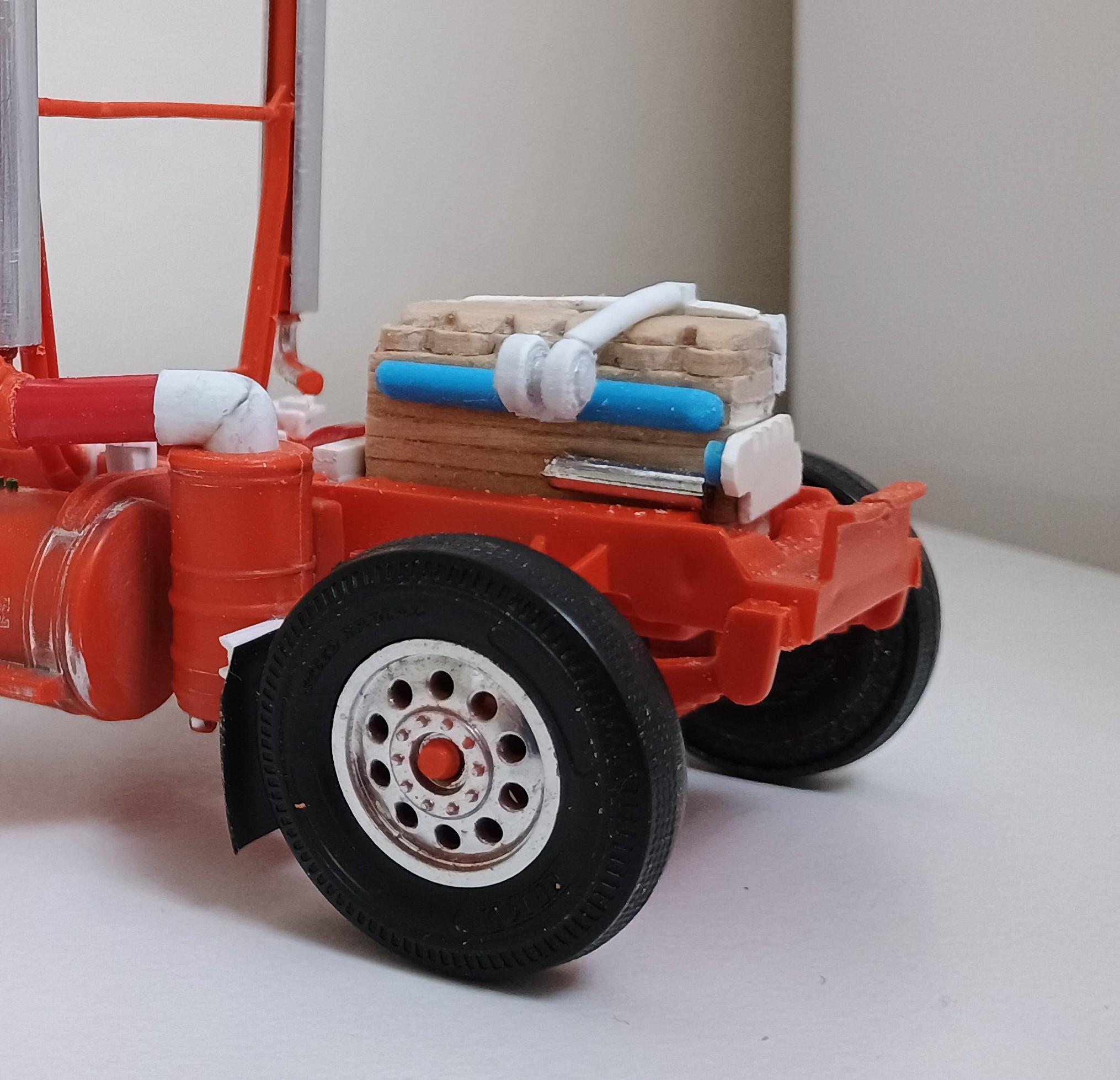

Got a bit done today, built the waterpump and added the lower radiator hose, also the pipe u to the thermostat. Then the oil cooler and the oil filter and housing. Made an intercooler coolant pipe across the timing cover. Finished the top of the intercooler and fitted a turbo and charge air pipe. It's very hard to get the dimensions right when you're shrinking things to such small sizes, especially when your only real reference is 'for sale' photos. One side done!

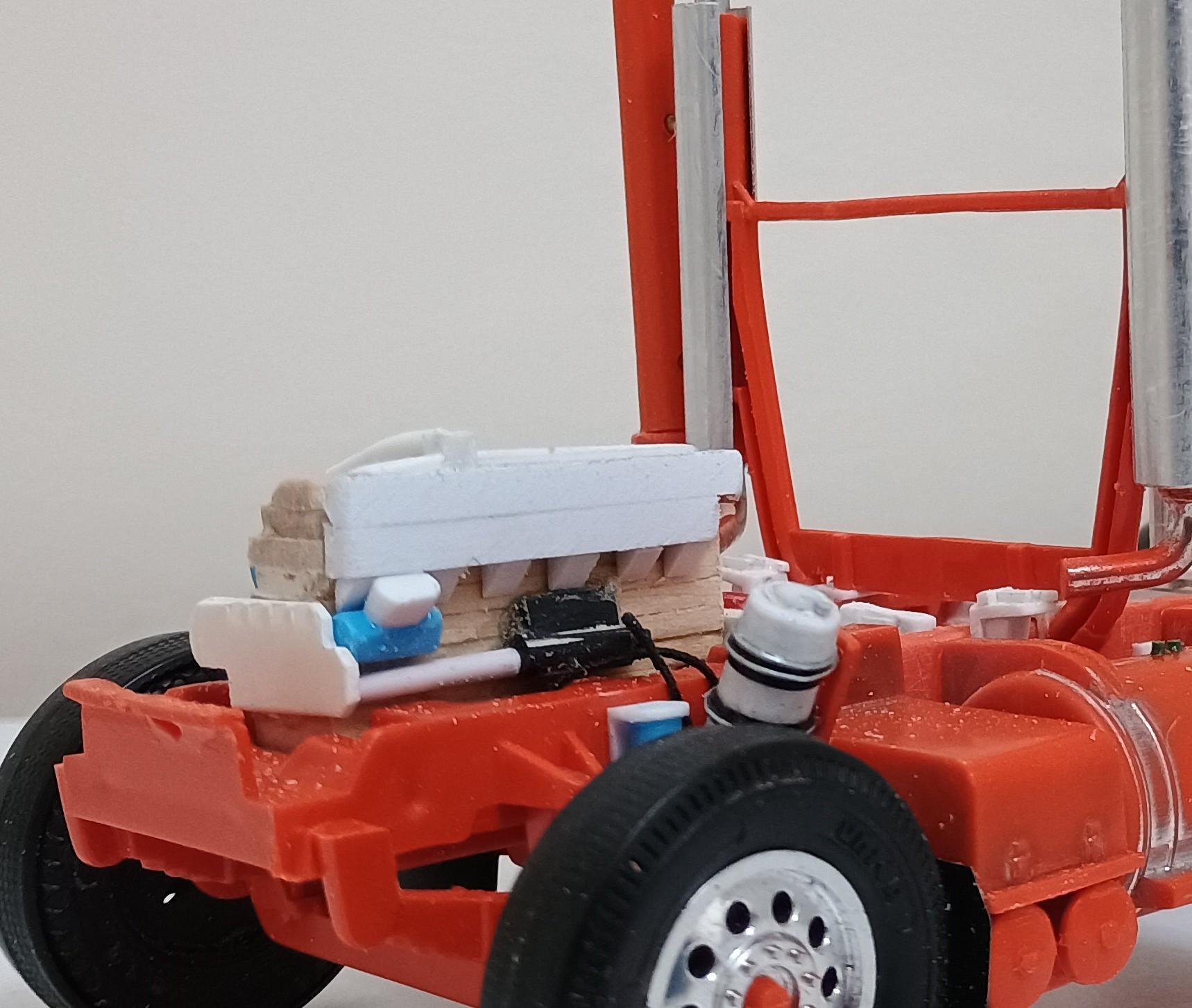

Carried on with the engine today. Made a simple log exhaust manifold and added the ports from more of the same. Added flanges cut in 1mm slices from 3.2mm square rod. Also fitted the flange for the turbo. Double wrapped 1mm electrical tape around twice to form the joints in the manifold. Looking at photos of the 3406 manifold there's some brackets cast in so added them too. I might try drilling the unused holes in the brackets should I feel adventurous. Also fabbed a thermostat housing and top hose fitting. Looks ok. Slow going but it's great therapy. The water pump is lying next to the engine. That and the oil cooler will finish this side.
